Designing a URL Shortener

A URL shortener converts a long URL into a compact identifier that redirects users to the original destination. The product appears simple, but designing it at large scale introduces important system design questions around identifier generation, storage, caching, database partitioning, redirects, availability, and abuse prevention.

It is also a useful system design interview problem because the basic architecture can be established quickly, leaving time to explore the decisions that matter: how short codes are generated without collisions, how billions of mappings are stored, and how a read-heavy redirect path remains fast and highly available.

Table of Contents

• Requirements and Scale Estimation
• API and Data Model
• Short Code Generation
  • Random Codes
  • Base62-Encoded IDs
• Designing the Redirect Path
• Database Scaling and Partitioning
• Reliability and Failure Handling
• Production Design Example
• Common Mistakes
• Interview Checklist
• Conclusion
• Key Takeaway
• More Articles to Read

Requirements and Scale Estimation

Before selecting databases or caches, define the important behavior.

Core functional requirements might be:

• create a short URL from a long URL;
• redirect a short URL to its original destination;
• optionally support expiration;
• optionally allow custom aliases;
• collect basic usage statistics.

Useful non-functional requirements include:

• very low redirect latency;
• high availability;
• durable URL mappings;
• horizontal scalability;
• redirects should continue working during partial failures.

The workload is normally read-heavy. URLs are created once but may be redirected many times.

Assume:

New URLs/day:          10 million
Redirects/day:          1 billion
Peak multiplier:        4×
Retention:               5 years
Average URL record:    500 bytes

Average writes:

10,000,000 / 86,400
≈ 116 writes/second

Average redirects:

1,000,000,000 / 86,400
≈ 11,600 reads/second

With a four-times peak:

Peak redirects:
11,600 × 4
≈ 46,400 requests/second

The approximate read-to-write ratio is:

1,000,000,000 : 10,000,000
= 100 : 1

This ratio strongly influences the design. The redirect path deserves aggressive optimization, while URL creation throughput is comparatively modest.

Five years of URL mappings produce:

10M × 365 × 5
≈ 18.25 billion URLs

At approximately 500 bytes per record:

18.25B × 500 bytes
≈ 9.1 TB raw data

Indexes, replicas, backups, and database overhead increase the actual physical requirement.

The purpose of these calculations is not exact infrastructure sizing. They establish that the system contains billions of small records, moderate write traffic, and substantially higher read traffic.

For the estimation methodology behind these calculations, see Estimating Scale and Capacity Planning.

API and Data Model

The external API can remain small.

Creating a short URL:

POST /urls

{
  "url": "https://example.com/articles/system-design"
}

Response:

{
  "short_url": "https://short.example/aZ91Kd"
}

The redirect endpoint is simply:

GET /aZ91Kd

The server looks up aZ91Kd and returns an HTTP redirect to the original URL.

A minimal data model might contain:

URLMapping

short_code
original_url
created_at
expires_at
user_id

The dominant access pattern is:

short_code --> original_url

That should influence the primary key or index design.

For example:

CREATE TABLE url_mappings (
    short_code VARCHAR(10) PRIMARY KEY,
    original_url TEXT NOT NULL,
    user_id BIGINT,
    created_at TIMESTAMP NOT NULL,
    expires_at TIMESTAMP
);

There is no requirement to search every URL by arbitrary attributes on the redirect path. Designing indexes around hypothetical queries would increase storage and write cost without improving the main workload.

Short Code Generation

The most recognizable part of the problem is generating compact unique identifiers.

A short code must provide enough combinations for the expected number of URLs.

A common alphabet is Base62:

0-9  = 10 characters
a-z  = 26 characters
A-Z  = 26 characters

Total = 62 characters

A six-character code provides:

62^6
≈ 56.8 billion combinations

Seven characters provide:

62^7
≈ 3.5 trillion combinations

That does not automatically mean every possible value can be safely allocated. The generation strategy determines collision behavior, predictability, and coordination requirements.

Random Codes

One approach generates a random Base62 string:

import secrets
import string

ALPHABET = string.ascii_letters + string.digits


def generate_short_code(length: int = 7) -> str:
    return "".join(
        secrets.choice(ALPHABET)
        for _ in range(length)
    )

The service then attempts to insert the generated code:

Generate code
     |
     v
Attempt INSERT
     |
     +--> success --> return short URL
     |
     +--> collision --> generate another code

The database must enforce uniqueness. A separate read-before-write check is not sufficient because concurrent requests can both observe that a code is free before attempting to insert it.

Advantages:

• simple generation;
• no central sequence required;
• codes are difficult to enumerate sequentially;
• generation can happen independently across application instances.

Disadvantages:

• collisions are possible;
• collision probability grows as the namespace fills;
• creation logic needs retry handling.

Base62-Encoded IDs

Another strategy generates a unique numeric ID and encodes it using Base62.

For example:

Database ID:
12583901

      |
      | Base62 encoding
      v

Short code:
qM8Zx

A simple encoder can look like:

ALPHABET = (
    "0123456789"
    "abcdefghijklmnopqrstuvwxyz"
    "ABCDEFGHIJKLMNOPQRSTUVWXYZ"
)


def encode_base62(value: int) -> str:
    if value == 0:
        return ALPHABET[0]

    encoded = []

    while value:
        value, remainder = divmod(value, 62)
        encoded.append(ALPHABET[remainder])

    return "".join(reversed(encoded))

Advantages:

• no collisions when input IDs are unique;
• compact representation;
• easy to implement.

Disadvantages:

• the system needs a globally unique ID strategy;
• simple sequential IDs make URLs easier to enumerate;
• a centralized ID generator can become a dependency or bottleneck if poorly designed.

The interview does not require declaring one approach universally superior. The important part is recognizing the trade-off between collision handling and unique-ID coordination.

Designing the Redirect Path

The redirect path is the most performance-sensitive operation.

A basic implementation is:

Client
  |
  v
Load Balancer
  |
  v
Redirect Service
  |
  v
Database
  |
  v
Original URL

At tens of thousands of redirects per second, repeatedly reading popular mappings from the database is unnecessary.

A cache can serve frequently accessed URLs:

                         Client
                           |
                           v
                     Load Balancer
                           |
                           v
                   Redirect Service
                           |
                           v
                         Cache
                       /       \
                    HIT         MISS
                     |            |
                     |            v
                     |         Database
                     |            |
                     |       populate cache
                     |            |
                     +------------+
                           |
                           v
                      HTTP Redirect

Pseudocode for the lookup path:

def resolve_url(short_code: str) -> str | None:
    cached = cache.get(short_code)

    if cached is not None:
        return cached

    mapping = repository.find_by_short_code(short_code)

    if mapping is None:
        return None

    cache.set(
        short_code,
        mapping.original_url,
        ttl=3600,
    )

    return mapping.original_url

A read-heavy workload with highly skewed popularity can produce a strong cache hit rate because a relatively small subset of URLs may account for a large portion of redirects.

However, caching introduces additional questions:

• What TTL should mappings use?
• What happens when a URL expires?
• Should deleted mappings be invalidated immediately?
• What happens when the cache fails?
• How are extremely popular hot keys handled?

If URL mappings are immutable after creation, caching becomes considerably easier because invalidation is rare.

Negative caching can also reduce repeated database queries for nonexistent short codes:

GET /invalid123
       |
       v
Cache MISS
       |
       v
Database MISS
       |
       v
Cache "not found" briefly

The negative TTL should generally remain short so that temporary or newly created states are not incorrectly hidden for long periods.

301 vs 302 Redirects

The service also needs to choose the HTTP redirect behavior.

If detailed click analytics and destination changes are important, temporary redirects may provide more control. If reducing redirect-service traffic is more important and destinations are permanent, cacheable permanent redirects can be useful.

This is another example where product requirements determine the infrastructure behavior.

Database Scaling and Partitioning

The estimated dataset contains billions of mappings. At sufficient scale, the database may need partitioning.

The main lookup is:

short_code --> original_url

That makes the short code a natural partitioning input.

A simple hash-based strategy can be represented as:

hash(short_code) % number_of_partitions

For example:

aZ91Kd --> hash --> Partition 2
b82LmQ --> hash --> Partition 4
xP09Ka --> hash --> Partition 1

The architecture becomes:

                    Redirect Service
                          |
                          v
                    Partition Router
                    /      |       \
                   /       |        \
                  v        v         v
               Shard 1  Shard 2   Shard 3

Hash distribution helps spread unrelated short codes across storage nodes.

Partition count requires care. A simple modulo function tied directly to the number of physical shards makes adding a shard expensive because many keys move.

Production systems can use logical partitions, consistent hashing, or another indirection layer so physical topology can change without remapping most of the dataset.

Database replicas can provide additional read capacity and availability:

                    Primary Shard
                     /         \
                    v           v
               Replica 1    Replica 2

But replication introduces consistency considerations. A newly created short URL written to the primary may not immediately appear on an asynchronous replica.

One solution is to route recent writes to the primary or populate the cache as part of successful creation:

Create mapping
      |
      v
Write database
      |
      v
Populate cache
      |
      v
Return short URL

The first redirect can then succeed through the cache even while replicas are catching up.

Reliability and Failure Handling

A URL shortener is often expected to remain available because short URLs may appear in emails, documents, advertisements, QR codes, and external websites long after creation.

The redirect path should therefore avoid unnecessary dependencies.

A useful production design separates URL creation from URL resolution:

                +-------------------+
                | Creation Service  |
                +-------------------+
                         |
                         v
                     Database


Users
  |
  v
+-------------------+
| Redirect Service  |
+-------------------+
        |
        +------> Cache
        |
        +------> Database

If analytics processing fails, redirects should still work. Click events can be published asynchronously:

Redirect request
      |
      v
Resolve URL
      |
      +------------------> return redirect
      |
      +--> Analytics Queue
                 |
                 v
             Consumers

The critical path remains small:

Client
  |
  v
Redirect Service
  |
  v
Cache / Database
  |
  v
Redirect

Analytics, aggregation, reporting, and other secondary features should not normally block it.

Failure behavior should be explicit:

The cache failure case deserves special attention. If a cache serving 90% of reads disappears, database traffic can increase approximately tenfold almost immediately.

Before cache failure:

100,000 requests/sec

90,000 --> cache hits
10,000 --> database


After cache failure:

100,000 --> database

A database sized only for normal cache-miss traffic may collapse during this event. Cache architecture therefore needs to consider degraded-state database capacity, request throttling, cache recovery, and hot-key protection.

Production Design Example

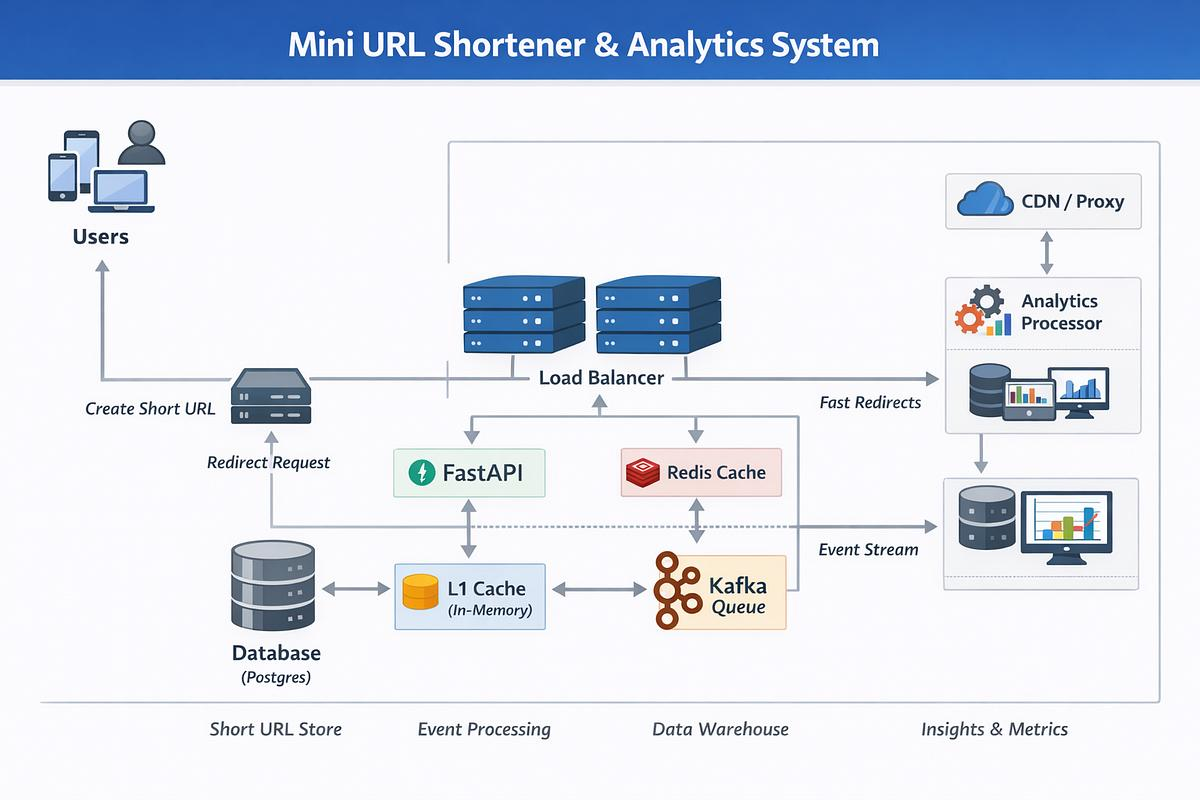

A practical large-scale architecture can separate creation, redirects, storage, caching, and analytics:

                              Clients
                                 |
                                 v
                          +--------------+
                          | Load Balancer|
                          +--------------+
                            /          \
                           /            \
                          v              v
               +----------------+  +----------------+
               | URL Creation   |  | Redirect       |
               | Service        |  | Service        |
               +----------------+  +----------------+
                       |                /       \
                       |               v         v
                       |             Cache    URL Store
                       |                         |
                       v                         |
                    URL Store                    |
                                                 |
                                      +----------+
                                      |
                                      v
                               Analytics Queue
                                      |
                                      v
                               Analytics Workers
                                      |
                                      v
                                Analytics Store

The creation flow is:

1. Validate original URL
2. Generate short code
3. Attempt durable insert
4. Retry if random-code collision occurs
5. Optionally populate cache
6. Return short URL

A simplified implementation might look like:

def create_short_url(original_url: str) -> str:
    validate_url(original_url)

    for _ in range(5):
        code = generate_short_code()

        try:
            repository.insert(
                short_code=code,
                original_url=original_url,
            )

            cache.set(
                code,
                original_url,
                ttl=3600,
            )

            return code

        except DuplicateShortCode:
            continue

    raise RuntimeError("Unable to allocate short code")

The database unique constraint is the authority for collision detection.

The redirect flow is:

1. Receive short code
2. Check cache
3. On miss, query URL store
4. Reject missing or expired mapping
5. Populate cache
6. Publish analytics event asynchronously
7. Return HTTP redirect

A simplified resolver:

def redirect(short_code: str):
    original_url = cache.get(short_code)

    if original_url is None:
        mapping = repository.find(short_code)

        if mapping is None or mapping.is_expired():
            return not_found()

        original_url = mapping.original_url

        cache.set(
            short_code,
            original_url,
            ttl=3600,
        )

    analytics.publish({
        "short_code": short_code,
    })

    return temporary_redirect(original_url)

In production, analytics publication should not be allowed to make the core redirect unavailable. Depending on the required analytics guarantees, event publication can use bounded timeouts, buffering, or another mechanism that keeps secondary work away from the latency-sensitive path.

The most useful metrics include:

• redirect requests per second;
• redirect latency percentiles;
• cache hit ratio;
• database read and write latency;
• short-code collision rate;
• not-found rate;
• expired URL rate;
• database partition traffic distribution;
• hot-key frequency;
• analytics queue depth;
• error rate by availability zone.

Cache hit ratio is particularly important because it changes database capacity requirements dramatically.

Suppose peak traffic reaches 50,000 redirects per second:

95% cache hit rate:

Cache:
47,500 reads/sec

Database:
2,500 reads/sec

If the hit rate unexpectedly drops to 70%:

Database:
15,000 reads/sec

The database load increases sixfold without any increase in user traffic.

Capacity planning should therefore model changes in cache effectiveness, not only changes in request volume.

Common Mistakes

Interview Checklist

• Clarify features: define creation, redirects, expiration, aliases, and analytics scope.
• Estimate reads and writes separately: establish the read-heavy nature of the workload.
• Estimate stored mappings: calculate the order of magnitude over the required retention period.
• Define the main access pattern: optimize short_code → original_url.
• Select an identifier strategy: compare random codes with encoded unique IDs.
• Enforce uniqueness atomically: avoid race-prone read-before-write collision checks.
• Optimize redirects: cache popular mappings and keep the critical request path small.
• Choose redirect semantics: explain permanent versus temporary redirects according to product needs.
• Plan database partitioning: use a key that distributes mappings predictably at scale.
• Consider replica consistency: account for redirects immediately following URL creation.
• Keep analytics asynchronous: prevent secondary features from reducing redirect availability.
• Plan cache failure: understand how cache misses affect database capacity.
• Handle expiration: coordinate durable records and cached mappings.
• Protect the service: consider malicious destinations, abusive creation, enumeration, and rate limits.
• Monitor the critical path: track redirect latency, cache effectiveness, storage health, and partition imbalance.

Conclusion

A URL shortener demonstrates several fundamental system design principles in a compact problem. The workload is usually highly read-heavy, the primary data access pattern is simple, and caching can remove most reads from durable storage. At larger scale, identifier generation, database partitioning, cache behavior, and failure handling become the important design decisions.

The architecture should remain centered on the product's most important operation: resolving a short code into a destination with low latency and high availability. Analytics and other secondary capabilities should not unnecessarily increase the complexity or failure surface of that path.

Key Takeaway

Design the URL shortener around the redirect path, not around the short-code algorithm. Estimate the workload first, choose a code-generation strategy with explicit uniqueness semantics, store mappings according to their primary lookup key, cache popular redirects, keep secondary work asynchronous, and plan for the database load that appears when the cache or another layer fails.

More Articles to Read

• System Design Interviews Explained: What Companies Actually Expect
• Estimating Scale and Capacity Planning
• Designing a Notification System
• Designing a Chat Application
• Designing a File Storage Service
• Common System Design Interview Mistakes
