Scalability, Availability & Stability Patterns

Production systems must handle three different forms of pressure: growth, failure, and overload. Scalability addresses growth, availability keeps critical functionality reachable during failures, and stability prevents degraded components or excessive load from causing uncontrolled system-wide failure.

These qualities overlap, but they are not interchangeable. Adding application instances can improve scalability without protecting against a database outage. Replication can improve availability while an overloaded dependency still causes cascading failures. Circuit breakers can improve stability without increasing system capacity.

Strong architecture combines these properties deliberately: scale resources that become bottlenecks, replicate components that must survive failure, and isolate components whose failure could spread. The original article already established this distinction and organized the patterns around scalability, availability, and stability.

Table of Contents

• Scalability vs Availability vs Stability
• Scalability Patterns
  • Horizontal Scaling
  • Caching and Data Scaling
  • Asynchronous Processing
• Availability Patterns
  • Redundancy and Failover
  • Replication and Failure Domains
• Stability Patterns
  • Timeouts, Retries, and Circuit Breakers
  • Bulkheads, Rate Limits, and Backpressure
  • Graceful Degradation
• How the Patterns Work Together
• Production Design Example
  • Architecture
  • Normal Request Flow
  • Failure and Overload Flow
• Trade-Offs
• Common Mistakes
• Production Checklist
• Conclusion
• More Articles to Read

Scalability vs Availability vs Stability

The three properties answer different production questions.

A system can have one property without the others.

For example, an API running on 100 stateless instances may scale horizontally, but it is not highly available if every instance depends on one database. A replicated system may remain available after a server failure but become unstable when retries multiply traffic during an outage.

Growth
  |
  v
Scalability
  |
  +---- Add capacity
  +---- Reduce work
  +---- Partition workload

Failure
  |
  v
Availability
  |
  +---- Replicate
  +---- Detect failure
  +---- Fail over

Overload / Degradation
  |
  v
Stability
  |
  +---- Bound work
  +---- Isolate failures
  +---- Shed load
  +---- Degrade gracefully

The distinction matters because applying the wrong pattern can hide rather than solve the underlying problem.

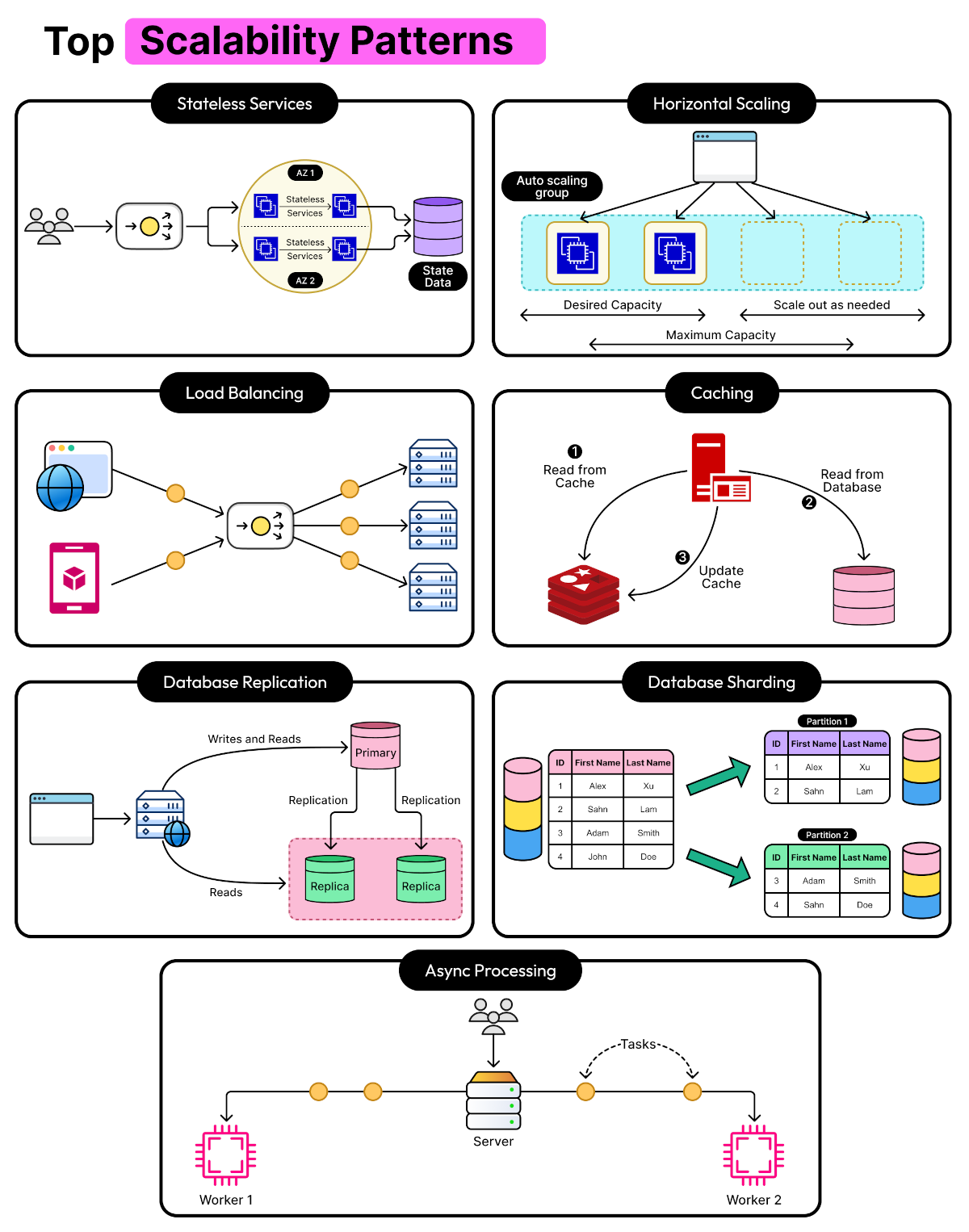

Scalability Patterns

Scalability is the ability to increase useful system capacity as workload grows without unacceptable degradation in latency, throughput, cost, or reliability.

Workload growth can mean more requests per second, larger datasets, more tenants, more concurrent connections, more background jobs, or heavier individual operations. Different dimensions usually require different scaling strategies.

Horizontal Scaling

Vertical scaling increases the resources available to one machine. Horizontal scaling adds more machines and distributes work between them.

Vertical scaling is operationally simple, but every machine eventually reaches a practical limit. Horizontal scaling provides a larger growth path but requires the workload to be distributable.

Vertical:

Requests
   |
   v
+-------------------+
| Larger API Server |
| More CPU / RAM    |
+-------------------+


Horizontal:

                 Load Balancer
                /      |      \
               v       v       v
             API 1   API 2   API 3

Stateless application servers are particularly easy to scale horizontally because any healthy instance can process any request.

State stored in local memory, local files, or instance-specific sessions creates affinity between requests and machines. Shared state should generally move to systems designed for it, such as databases, distributed caches, or object storage.

Advantages:

• capacity can increase incrementally
• instance failures have a smaller impact
• autoscaling can follow changing workloads
• deployments can replace instances gradually

Disadvantages:

• distributed state becomes more complex
• load balancing becomes necessary
• downstream services may become the new bottleneck
• more instances create more connections and operational overhead

When to Use: horizontal scaling is a strong default for stateless APIs, workers, web applications, and independently partitionable workloads.

Caching and Data Scaling

Scaling does not always mean adding compute. Often the most effective optimization is performing less expensive work per request.

A cache can remove repeated database queries or expensive computations:

def get_product(product_id):
    cache_key = f"product:{product_id}"

    product = cache.get(cache_key)
    if product is not None:
        return product

    product = database.get_product(product_id)
    cache.set(cache_key, product, ttl=300)

    return product

If a database receives 20,000 identical reads per second and caching serves 95% of them, the database sees roughly 1,000 of those reads instead.

Caching therefore creates additional effective capacity without proportionally scaling the database.

The trade-off is consistency. Cached data can become stale, cache invalidation becomes part of write behavior, and hot keys can overload individual cache nodes.

For deeper coverage, see Cache in Software System Design: A Practical Guide.

When a single database cannot support the required dataset or write throughput, partitioning or sharding can distribute data across nodes:

def shard_for_account(account_id: int, shard_count: int) -> int:
    return hash(account_id) % shard_count

Sharding increases aggregate capacity, but it changes application architecture. Cross-shard queries, transactions, migrations, rebalancing, and hot partitions become production concerns.

Asynchronous Processing

Not every operation belongs in the synchronous request path.

Queues allow a system to accept work quickly and process it according to downstream capacity:

Request
   |
   v
Order API
   |
   +---- Save Order
   |
   +---- Publish Event
             |
             v
        Durable Queue
        /     |      \
       v      v       v
    Email  Analytics  Fulfillment

This improves scalability because producers and consumers can scale independently. It also absorbs short bursts when incoming traffic temporarily exceeds processing capacity.

However, a queue does not create unlimited capacity. If producers continuously generate 20,000 jobs per second while workers process 10,000, backlog grows by 10,000 jobs every second.

queue_growth_rate = producer_rate - consumer_rate

Queue depth, oldest-message age, processing throughput, retry rate, and dead-letter volume are therefore critical scaling signals.

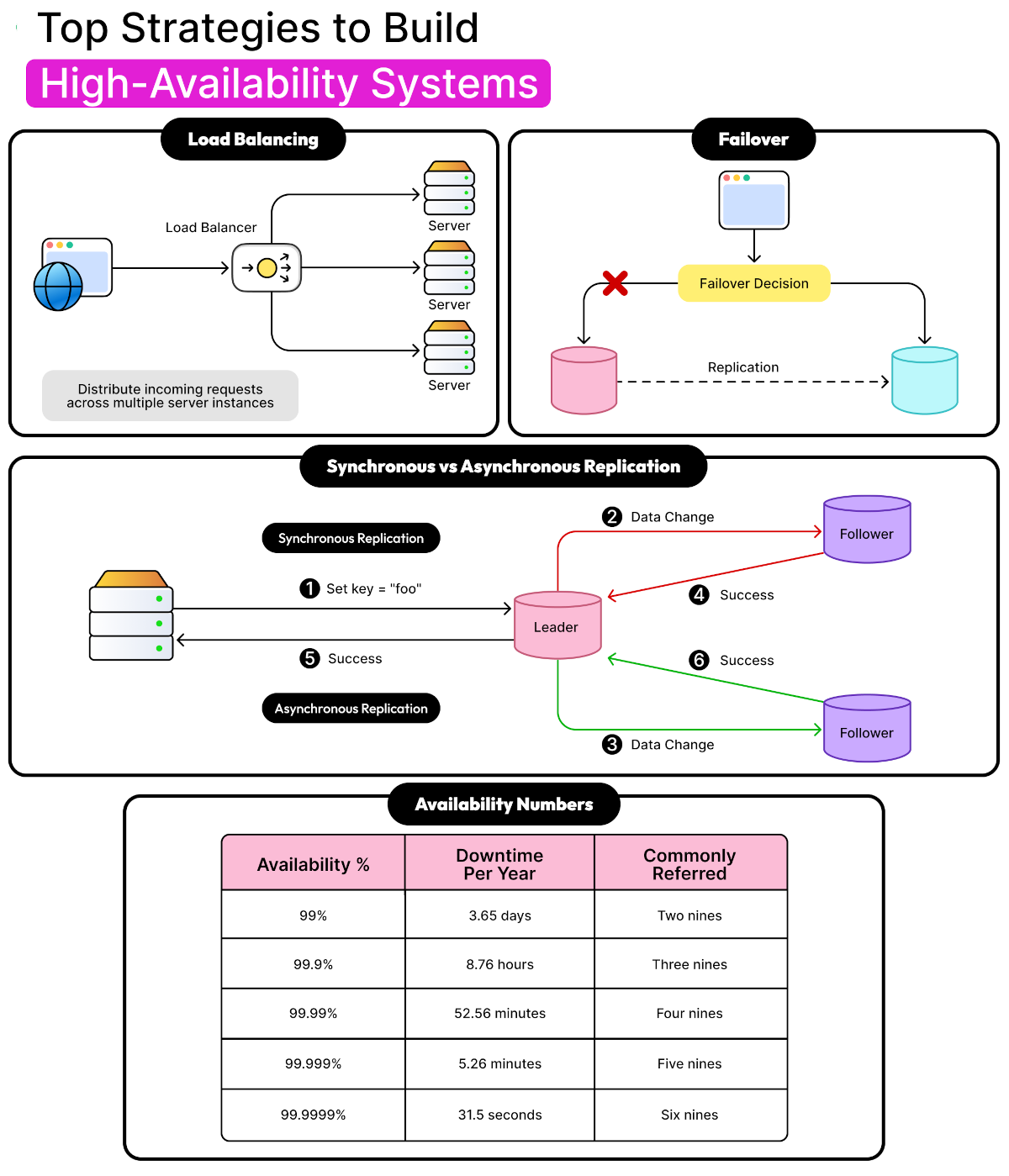

Availability Patterns

Availability is the ability to provide required functionality despite expected component failures.

The basic strategy is straightforward: eliminate critical single points of failure, detect unhealthy components, and redirect work toward healthy capacity.

Redundancy and Failover

Redundancy creates alternative capacity. Failover makes that capacity useful after failure.

                 Load Balancer
                /             \
               v               v
            Zone A          Zone B
             API             API
              |               |
              +-------+-------+
                      |
                 Database
                Primary/Standby

Simply creating duplicate components is insufficient. The system must know when the primary path is unhealthy and how traffic or ownership moves to the replacement.

Failover also requires capacity headroom. If two zones each operate at 80% utilization, losing one zone cannot safely move its entire workload to the surviving zone.

Redundancy without recovery capacity creates an architecture that appears highly available on diagrams but fails under real production load.

Replication and Failure Domains

Replicas should be distributed across meaningful failure domains. Two database replicas on the same physical host do not protect against host failure. Two application groups in one availability zone do not protect against zone failure.

Failure domains can include:

• processes
• virtual machines
• physical hosts
• network devices
• availability zones
• regions
• cloud providers
• external service providers

Replication also introduces a data problem: copies may not be synchronized at the moment of failure.

Write
  |
  v
Primary
  |
  | asynchronous replication
  v
Replica

Primary fails before latest write reaches replica
                       |
                       v
                Possible data loss

Availability design must therefore define both RTO — how quickly service must recover — and RPO — how much recent data loss is acceptable.

Multi-zone and multi-region availability are different problems. Multi-zone deployment is often appropriate for normal production resilience, while multi-region architecture is justified when regional failure must be tolerated.

For deeper regional design trade-offs, see Multi-Region Architecture and Disaster Recovery.

Stability Patterns

Stability means the system remains controlled when traffic exceeds expectations, dependencies slow down, queues grow, or parts of the architecture become unhealthy.

The goal is not to prevent every failure. The goal is to stop local problems from consuming shared resources and becoming cascading failures.

Timeouts, Retries, and Circuit Breakers

Every remote call consumes resources while it waits. Without a timeout, one slow dependency can gradually consume connection pools, threads, workers, and request concurrency.

import httpx

timeout = httpx.Timeout(
    connect=1.0,
    read=2.0,
    write=2.0,
    pool=0.5,
)

with httpx.Client(timeout=timeout) as client:
    response = client.get("https://carrier.example.com/tracking/123")

Retries can recover from temporary failures, but they also multiply load.

If 10,000 requests fail and each request performs three additional attempts, a struggling dependency can receive up to 40,000 attempts instead of 10,000.

Retries should therefore be bounded and normally combined with exponential backoff and jitter.

A circuit breaker provides another boundary:

Closed
  |
  | failures exceed threshold
  v
Open
  |
  | cooldown
  v
Half-Open
  |
  +---- success ----> Closed
  |
  +---- failure ----> Open

When the dependency is clearly unhealthy, failing fast protects application resources and gives the dependency time to recover.

For detailed retry behavior, see Timeouts, Retries, and Exponential Backoff.

Bulkheads, Rate Limits, and Backpressure

Bulkheads prevent one workload from consuming resources needed by another.

                    Application
                   /     |      \
                  v      v       v
             Payments Search  Reports
                Pool    Pool     Pool
                  |      |       |
                  v      v       v
             Provider  Index  Analytics DB

If the reporting database becomes extremely slow, the reporting pool can saturate without consuming every worker or connection available to payment requests.

Rate limiting protects capacity before excessive traffic enters expensive parts of the system. Limits can be applied globally or by tenant, user, endpoint, API key, or workload class.

Backpressure addresses a related problem between producers and consumers. When downstream processing cannot keep up, the system must eventually slow producers, reject requests, delay work, or discard lower-priority operations.

Without backpressure:

Producer: 20k jobs/sec
          |
          v
       Queue
     grows forever
          |
          v
Workers: 8k jobs/sec

Result:
queue depth ↑
latency ↑
storage ↑
recovery time ↑

A bounded system has an explicit overload policy instead of allowing unlimited backlog.

Graceful Degradation

Not every dependency has equal business importance.

If recommendations fail, an e-commerce product page may still be useful. If analytics ingestion fails, checkout may still proceed. If a live shipping estimate is unavailable, previously calculated data may be preferable to a complete error.

def build_product_page(product_id):
    product = product_service.get(product_id)

    try:
        recommendations = recommendation_service.get(product_id)
    except DependencyUnavailable:
        recommendations = []

    return {
        "product": product,
        "recommendations": recommendations,
    }

Graceful degradation requires dependencies to be classified as critical or optional.

Critical dependencies may require redundancy and stronger recovery guarantees. Optional dependencies should usually have strict timeouts and fallbacks so they cannot destroy the critical path.

For deeper coverage, see Designing Graceful Degradation Strategies.

How the Patterns Work Together

Production architecture rarely solves scalability, availability, and stability independently. Many patterns contribute to multiple qualities, but in different ways.

The patterns can also interact negatively.

Autoscaling an API from 20 to 100 instances may increase database connections fivefold. Retries can turn a small dependency failure into a traffic amplification event. Caching can reduce database load but create a cache stampede when a popular key expires.

Architecture must therefore evaluate system-wide effects, not only the component being optimized.

Production Design Example

Consider an e-commerce platform preparing for a high-traffic sale. Product traffic may increase by 20×, payment providers can become slow, inventory must remain correct, and non-critical features should not interfere with checkout.

The architecture must solve growth, failure, and overload simultaneously.

Architecture

                         Users
                           |
                           v
                      CDN / Edge
                           |
                           v
                     Load Balancer
                      /         \
                     v           v
               Product API   Checkout API
                  |   |          |      |
                  |   v          |      v
                  | Redis        |   Payment Provider
                  |              |      |
                  v              |  Circuit Breaker
              Read Replica       |
                                 v
                           Primary Database
                                 |
                                 v
                            Order Queue
                         /       |       \
                        v        v        v
                  Inventory   Email   Analytics
                   Workers   Workers   Workers

The design assigns different patterns to different failure modes instead of applying the same strategy everywhere.

Normal Request Flow

Product pages are read-heavy. Static assets and cacheable public content are served at the edge, while Redis absorbs repeated product reads before they reach the database.

Application instances remain stateless and scale horizontally behind the load balancer.

Checkout follows a shorter, stricter critical path:

Checkout Request
      |
      v
Validate Order
      |
      v
Reserve Inventory
      |
      v
Process Payment
      |
      v
Persist Order
      |
      v
Publish Order Event
      |
      v
Return Success

Email, analytics, and other asynchronous work execute after the critical transaction rather than increasing checkout latency.

Failure and Overload Flow

Suppose the payment provider becomes slow.

Without stability controls:

Payment slows
     |
     v
Requests wait longer
     |
     v
Worker concurrency exhausted
     |
     v
Request queues grow
     |
     v
Checkout API becomes unhealthy
     |
     v
Retries increase traffic
     |
     v
Cascading failure

With bounded failure handling:

Payment slows
     |
     v
Timeouts expire
     |
     v
Circuit breaker opens
     |
     v
New calls fail fast
     |
     v
Checkout resources remain bounded
     |
     v
Other application functionality continues

Now suppose product traffic suddenly increases 20×.

The CDN and Redis absorb much of the read load, while application autoscaling adds API capacity. Rate limits prevent abusive clients from consuming unlimited resources.

If incoming asynchronous work exceeds worker capacity, queue depth grows temporarily. Autoscaling workers can increase consumer throughput, but a maximum queue age or admission policy should prevent unlimited backlog.

If one application zone fails, load-balancer health checks remove its instances and direct traffic toward healthy zones. Surviving zones must have enough capacity to absorb the failed zone's workload.

The architecture therefore applies:

• horizontal scaling for increasing API and worker throughput
• caching for read amplification
• replication for database availability and read scale
• queues for asynchronous workload absorption
• timeouts to bound dependency waiting
• circuit breakers to stop repeated calls to unhealthy providers
• bulkheads to isolate critical and non-critical workloads
• rate limits to protect finite capacity
• graceful degradation for optional features

Production monitoring should track the signals that reveal when these mechanisms approach their limits:

• requests per second and concurrent requests
• p50, p95, and p99 latency
• CPU, memory, and network saturation
• application instance count and autoscaling events
• database connections and query latency
• cache hit ratio and cache latency
• queue depth and oldest-message age
• dependency timeout and error rates
• retry volume
• circuit-breaker state changes
• rate-limit rejection rate
• healthy capacity by availability zone

A production architecture is not complete when the diagram looks redundant. It is complete when expected failures can be introduced and the measured system behavior remains within defined limits.

Trade-Offs

Scalability, availability, and stability are not free. Every additional mechanism consumes engineering effort, infrastructure, operational attention, or consistency guarantees.

The most important trade-offs are:

• Redundancy vs cost: idle or underutilized capacity may be necessary for failure recovery.
• Consistency vs availability: asynchronous replicas improve distribution but can serve stale state.
• Caching vs freshness: lower latency and database load introduce invalidation complexity.
• Retries vs load amplification: transient recovery can become retry storms during larger incidents.
• Queues vs latency: asynchronous processing absorbs bursts but introduces delayed completion and eventual consistency.
• Bulkheads vs utilization: reserved capacity limits blast radius but can leave resources idle.
• Rate limits vs user experience: protecting infrastructure means some requests may be intentionally rejected.
• Multi-region availability vs complexity: regional resilience introduces routing, replication, conflict-resolution, and operational challenges.

The objective is not maximum redundancy or maximum scale. The objective is to meet business requirements with known failure behavior and acceptable operational complexity.

Common Mistakes

Many production incidents happen because an architecture contains the right patterns individually but combines them without considering their system-wide effects.

Production Checklist

• Define capacity targets. Establish expected requests, concurrency, dataset growth, and background workload.
• Measure saturation. Track CPU, memory, connections, queue depth, storage, and downstream limits.
• Keep application instances stateless where practical. Allow any healthy instance to process a request.
• Scale bottlenecks independently. Application, workers, caches, and databases rarely need identical scaling policies.
• Use caching where freshness requirements allow it. Define invalidation and failure behavior before relying on cached data.
• Bound queues. Monitor both queue depth and oldest-message age.
• Define failure domains. Distribute critical replicas across infrastructure that can fail independently.
• Maintain failover capacity. Surviving infrastructure must handle expected failure scenarios.
• Define RTO and RPO. Recovery architecture should follow explicit business requirements.
• Use health checks. Remove instances that cannot safely receive new traffic.
• Set timeouts on remote calls. Never allow dependencies to consume resources indefinitely.
• Bound retries. Use exponential backoff and jitter for retryable failures.
• Protect dependencies with circuit breakers. Fail fast when continued requests are unlikely to succeed.
• Isolate critical resources. Use separate pools, queues, or workers where failure blast radius matters.
• Apply rate limits. Protect finite capacity from abusive or unexpectedly large workloads.
• Implement backpressure. Define what happens when producers exceed sustainable consumer throughput.
• Classify dependencies. Separate critical dependencies from optional functionality.
• Design graceful degradation. Preserve useful functionality when optional services fail.
• Monitor retry amplification. Track attempts separately from original requests.
• Test failures under realistic load. Verify instance, dependency, zone, and overload behavior before incidents occur.

Conclusion

Scalability, availability, and stability solve different production problems. Scalability provides capacity for growth, availability preserves service during failures, and stability prevents overload or degraded dependencies from spreading failure through the system.

Strong systems combine these properties rather than optimizing one in isolation. Scaling must consider downstream capacity, redundancy must cross real failure domains, and failure handling must place strict bounds on resource consumption.

Key Takeaway: scale what becomes saturated, replicate what must survive failure, and isolate what can become unhealthy. Production resilience comes from controlling both capacity and failure propagation.

More Articles to Read

• Scalability in Software System Design: A Practical Guide
• Availability in System Design: Principles, Patterns, and Practical Guidance
• Building Reliable Systems: Core Reliability Patterns Explained
• Timeouts, Retries, and Exponential Backoff
• Circuit Breaker vs Bulkhead vs Load Shedding
• Designing Graceful Degradation Strategies
• Reliability Best Practices for Production Systems
