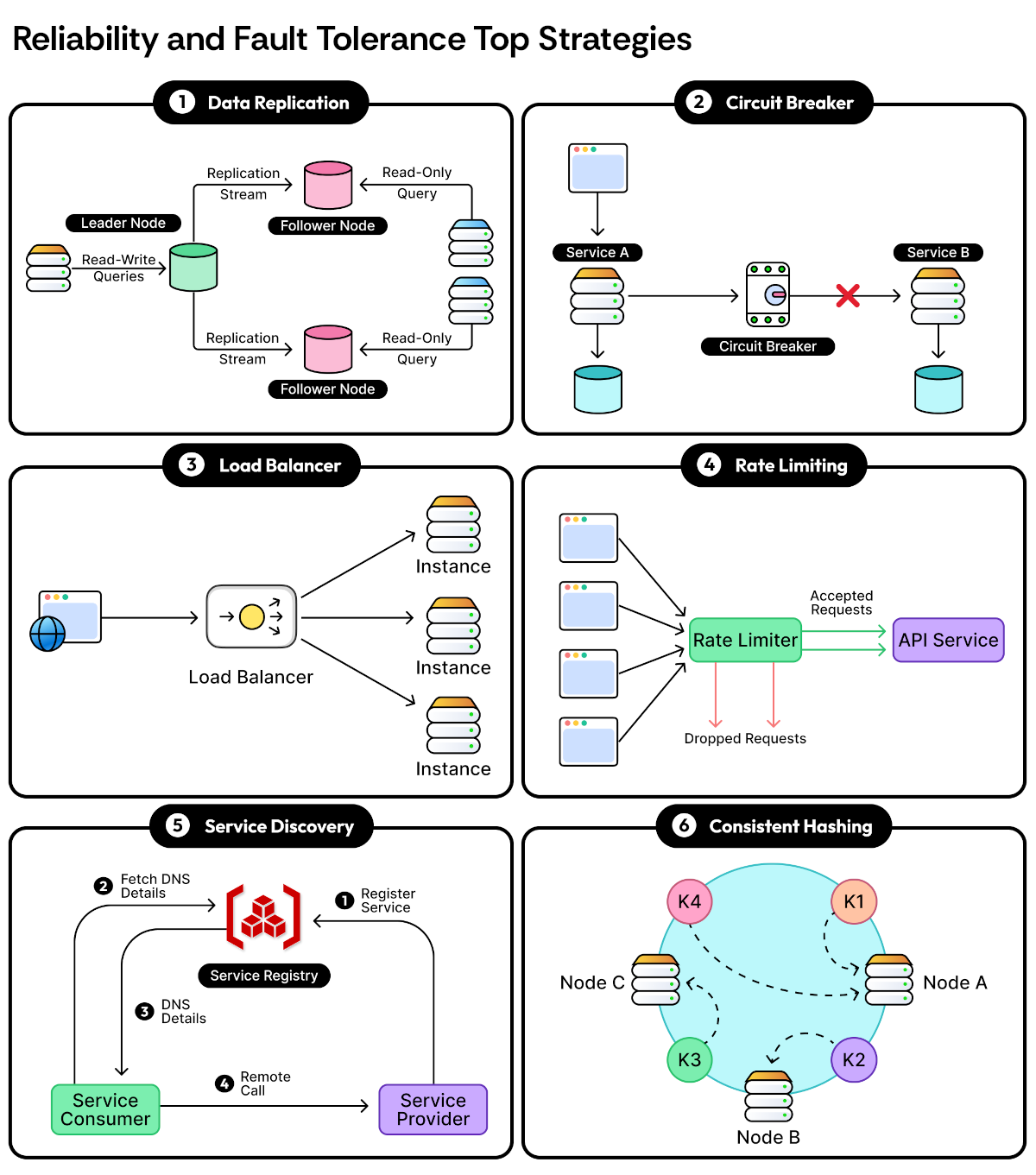

Reliability and Fault Tolerance Top Strategies

Reliable systems are designed to continue serving requests when individual components fail. Servers crash, databases become unavailable, downstream APIs slow down, traffic spikes unexpectedly, and network connections break. The architecture determines whether those failures remain isolated or turn into system-wide outages.

This article covers six important reliability and fault-tolerance strategies: data replication, circuit breakers, load balancing, rate limiting, service discovery, and consistent hashing. Each solves a different failure mode, and production systems commonly combine several of them.

Table of Contents

• Reliability and Fault Tolerance
• Data Replication
  • Production Example
• Circuit Breaker
  • Circuit Breaker States
  • Production Example
• Load Balancing
  • Production Example
• Rate Limiting
  • Production Example
• Service Discovery
  • Production Example
• Consistent Hashing
  • Production Example
• How These Strategies Work Together
• Choosing the Right Strategies
• Common Mistakes
• Production Checklist
• Frequently Asked Questions
  • Are Reliability and Availability the Same?
  • Is Redundancy Enough for Fault Tolerance?
  • Which Reliability Strategy Should Be Added First?
  • Can a Fault-Tolerant System Still Fail?
• Conclusion
  • More Articles to Read

Reliability and Fault Tolerance

Reliability is the ability of a system to perform its intended function consistently over time. A reliable system handles expected failures, changing load, and degraded dependencies without frequently producing incorrect results or becoming unavailable.

Fault tolerance is the ability to continue operating when part of the system fails. Instead of assuming every server, database, network connection, and external dependency will always work, a fault-tolerant architecture expects failures and provides alternative paths.

The basic principle is:

Component Failure
       │
       ↓
Detect Failure
       │
       ↓
Isolate or Route Around It
       │
       ↓
Continue Serving Requests
       │
       ↓
Recover Failed Component

No single pattern provides complete fault tolerance. Different strategies protect different parts of the architecture.

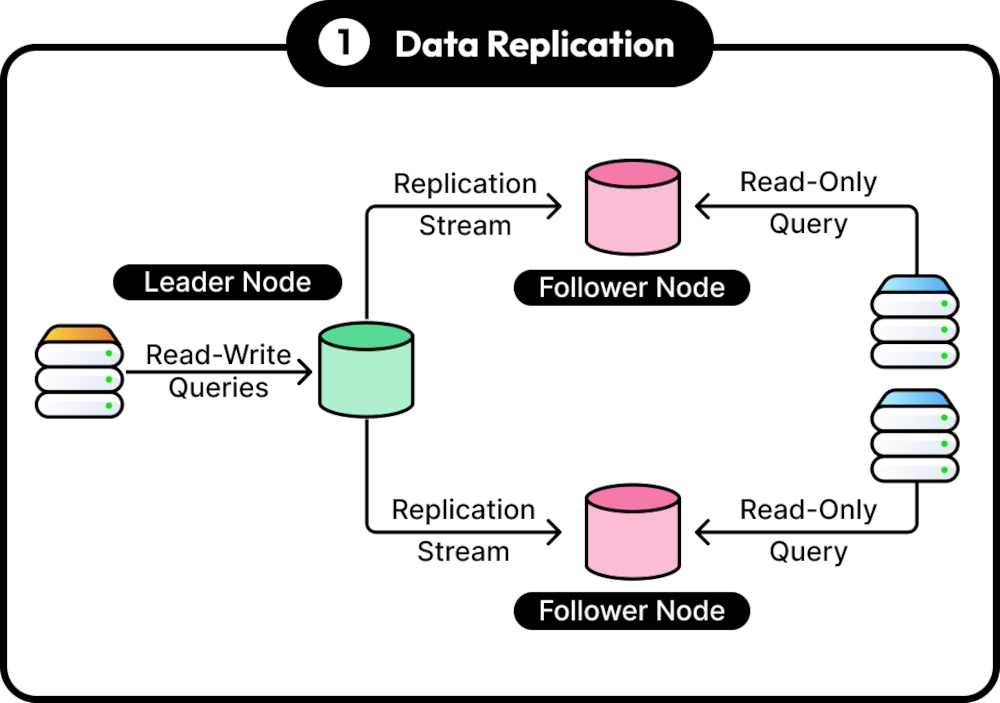

Data Replication

Data replication maintains copies of the same data on multiple database nodes. If one node becomes unavailable, another copy can continue serving some or all of the workload.

A common architecture uses one leader and multiple followers:

The leader handles writes and sends changes through a replication stream to follower nodes. Followers maintain copies of the leader's data and can often serve read-only queries.

Replication improves reliability because data no longer depends on a single database process or machine.

If a follower fails:

Leader
  │
  ├──→ Follower A ✓
  ├──→ Follower B ✗
  └──→ Follower C ✓

traffic can stop using Follower B while the remaining nodes continue serving requests.

If the leader fails, a system with a suitable failover mechanism can promote a follower:

Before Failure

Leader A ──→ Follower B
         └─→ Follower C


Leader A ✗


After Failover

Leader B ──→ Follower C

Replication does not automatically make a database fault tolerant. The system also needs failure detection, leader election or another promotion mechanism, client reconnection, and a clear consistency model.

Asynchronous replication introduces another trade-off. A follower may lag behind the leader:

Leader:    version 105
Follower:  version 102

Replication lag = 3 updates

A read from the follower can therefore return stale data. The architecture must decide which queries tolerate that behavior and which require stronger consistency.

Production Example

Consider an e-commerce platform where product browsing generates much more traffic than product updates.

Product Writes
      │
      ↓
    Leader
    /    \
   ↓      ↓
Replica  Replica
   ↑      ↑
   └──┬───┘
      │
Product Reads

Administrative updates go to the leader while catalog reads are distributed across replicas. If one replica becomes unhealthy, it is removed from the read pool.

This provides both additional read capacity and resilience to individual replica failures.

What Is Database Replication? covers replication topologies, replication lag, failover, and consistency trade-offs in more detail.

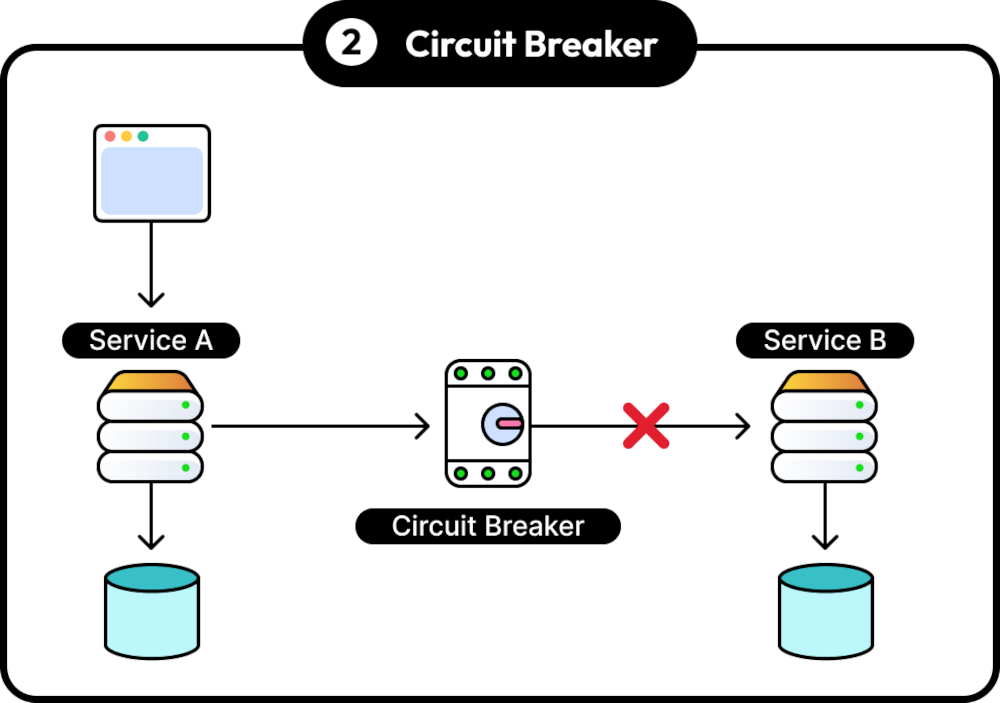

Circuit Breaker

A circuit breaker prevents repeated calls to a dependency that is already failing.

Consider Service A calling Service B:

If Service B becomes slow, Service A can accumulate waiting requests:

Request 1 ──→ Service B ──→ timeout
Request 2 ──→ Service B ──→ timeout
Request 3 ──→ Service B ──→ timeout
Request 4 ──→ Service B ──→ timeout
...

Threads, connections, memory, and request slots remain occupied while calls wait for a dependency that is unlikely to respond successfully.

Eventually Service A can fail even though its own code and infrastructure are healthy. This is a cascading failure.

A circuit breaker observes failures and temporarily stops sending requests to the unhealthy dependency:

Service A
    │
    ↓
Circuit Breaker ──X──→ Service B
    │
    ↓
Fail Fast / Fallback

Instead of waiting several seconds for every call to fail, requests can fail quickly or use a degraded response.

Circuit Breaker States

A circuit breaker commonly moves through three states:

CLOSED
  │
  │ failures exceed threshold
  ↓
OPEN
  │
  │ recovery timeout
  ↓
HALF-OPEN
  │
  ├── success ──→ CLOSED
  │
  └── failure ──→ OPEN

Closed means requests flow normally. Open means calls are rejected without contacting the failing dependency. Half-open allows limited probe requests to determine whether the dependency has recovered.

Production Example

Suppose an order service calls a recommendation service, but recommendations are not required to place an order.

Order Service
      │
      ├── Payment Service
      │
      └── Recommendation Service

If the recommendation service begins timing out, the circuit breaker can open and the order service can return the order response without recommendations.

{
  "order_id": "ORD-9281",
  "status": "confirmed",
  "recommendations": []
}

The optional feature degrades while the critical ordering path remains operational.

What Is a Circuit Breaker? covers circuit states, failure thresholds, recovery behavior, and implementation details.

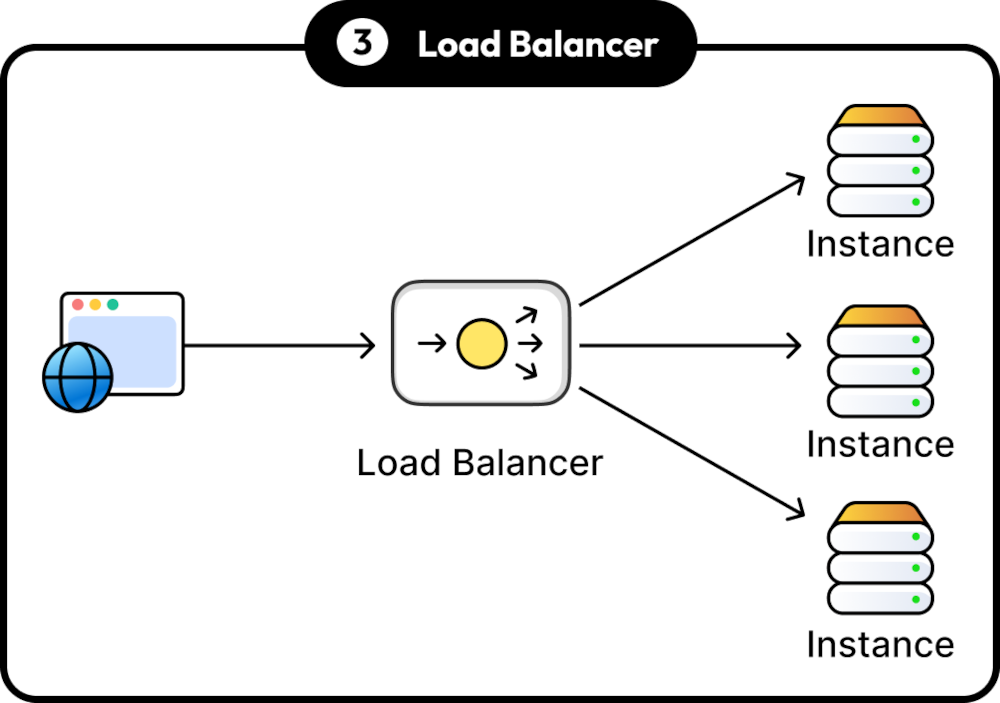

Load Balancing

A load balancer distributes incoming traffic across multiple service instances.

Load balancing improves scalability, but it is also an important reliability mechanism.

Without it, a client might depend directly on one application instance:

Client ──→ Instance A ✗

Even if Instances B and C are healthy, the client cannot use them automatically.

A load balancer creates a stable entry point and chooses among healthy instances:

Instance A ✓
Instance B ✗
Instance C ✓

            ┌──→ A
Client → LB ┤
            └──→ C

Health checks are critical. A load balancer that continues routing traffic to a failed instance distributes failures rather than preventing them.

For example:

GET /health/ready

200 → instance can receive traffic
503 → remove instance from rotation

When the instance becomes healthy again, it can return to the pool.

Production Example

Suppose an API runs on six application instances across three availability zones.

                 Load Balancer
                /      |      \
               /       |       \
            Zone A   Zone B   Zone C
             A1 A2    B1 B2    C1 C2

If instance B1 crashes, health checks remove it from rotation. The remaining five instances continue receiving requests.

If the complete Zone B becomes unavailable, traffic can be routed to healthy instances in Zones A and C.

This architecture reduces dependence on both individual machines and individual failure domains.

Load Balancing Explained: Distributing Traffic at Scale covers health checks, routing algorithms, stateless services, and highly available load-balancing architectures.

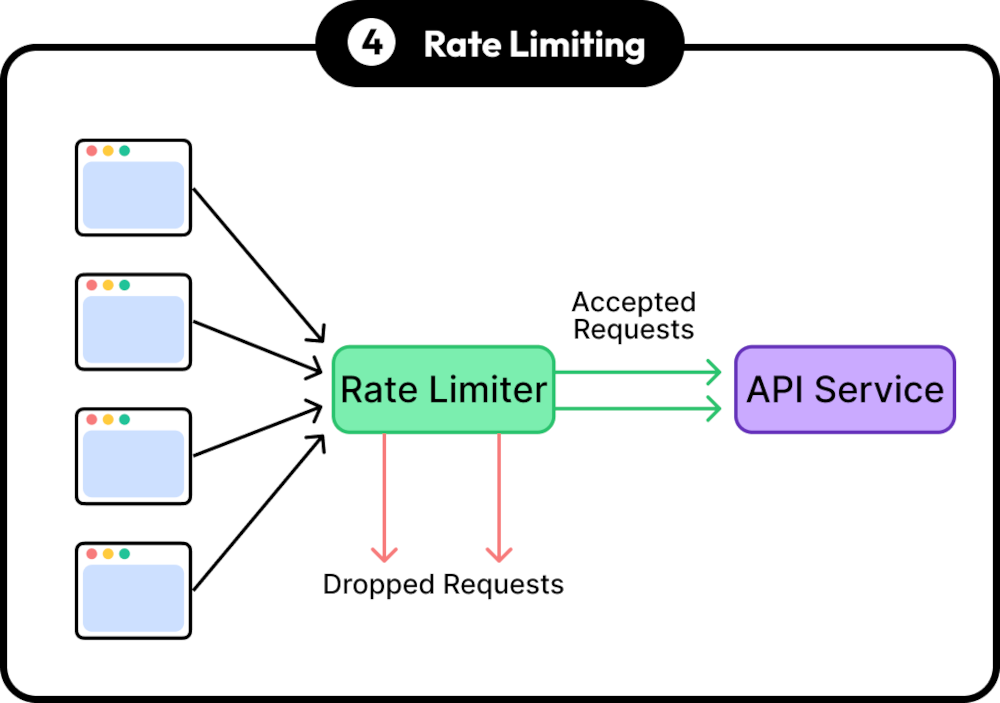

Rate Limiting

Rate limiting controls how many requests a client, tenant, API key, IP address, or other identity can send during a period of time.

Rate limiting is often associated with API abuse prevention, but it is also a reliability strategy.

Without protection, an unexpected traffic spike can exhaust a service:

Normal Capacity:  10,000 req/s
Incoming Traffic: 80,000 req/s

          ↓

CPU saturation
connection exhaustion
database overload
timeouts
retry storm
system failure

Rejecting part of the traffic can be better than accepting everything and allowing the entire service to collapse.

80,000 req/s
     │
     ↓
Rate Limiter
     │
     ├── 10,000 req/s ──→ Service
     │
     └── 70,000 req/s ──→ Reject / Delay

The exact numbers depend on the architecture, but the principle is important: controlled rejection protects useful work.

Production Example

Consider a public API where one customer accidentally deploys a loop that sends thousands of requests per second.

A per-customer limit can isolate the problem:

Customer A:  120 req/s  → accepted
Customer B:  180 req/s  → accepted
Customer C: 8,000 req/s  → limited
Customer D:   90 req/s  → accepted

Instead of allowing Customer C to consume the complete service capacity, excessive requests receive a controlled response:

HTTP/1.1 429 Too Many Requests
Retry-After: 2

The other customers remain largely unaffected.

API Rate Limiting and Throttling Explained covers token buckets, fixed and sliding windows, distributed counters, and throttling behavior.

Service Discovery

Distributed applications often run many dynamic service instances. Their addresses can change as containers restart, deployments replace instances, autoscaling adds capacity, or unhealthy nodes disappear.

Hard-coded addresses do not handle this environment well:

Service discovery allows service providers to register their locations and service consumers to discover currently available instances.

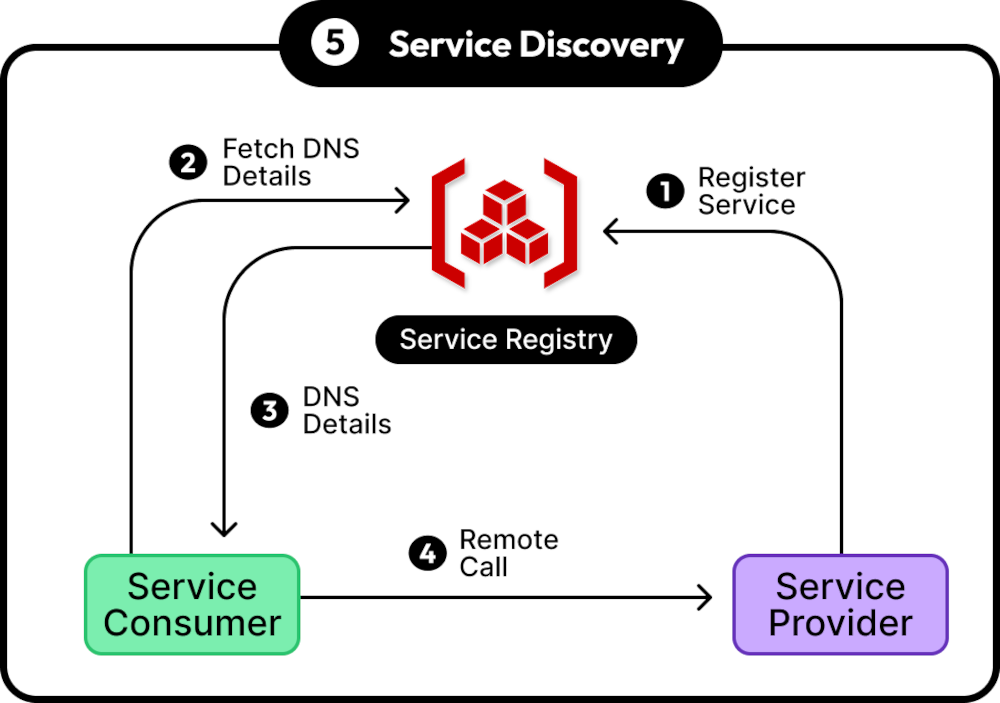

The image's flow can be represented as:

Service Provider
       │
       │ register
       ↓
Service Registry
       │
       │ discovery information
       ↓
Service Consumer
       │
       └────────────→ Service Provider

Instead of knowing a particular server address, the consumer asks for the logical service:

payments.internal

        ↓ DNS / registry

10.0.5.42
10.0.7.19
10.0.9.31

Discovery becomes part of fault tolerance when unhealthy instances are removed from the available endpoint set.

Service Registry

Instance A ✓
Instance B ✗  → removed
Instance C ✓

Consumer receives:
A, C

Production Example

Consider a microservice environment with 20 instances of an order service.

Autoscaling adds another five instances during a traffic spike:

Before:
order-service → 20 instances

Traffic spike
     │
     ↓
Autoscaling

After:
order-service → 25 instances

The new instances register or become discoverable through the platform. Consumers can start sending traffic to them without configuration changes or deployments.

If three instances later fail health checks, they stop being advertised to consumers.

What Is Service Discovery? covers registries, DNS-based discovery, client-side discovery, server-side discovery, and health integration.

Consistent Hashing

Consistent hashing distributes keys across nodes while minimizing how many keys must move when nodes are added or removed.

This property is valuable in distributed caches, partitioned storage, and other systems where nodes can join or leave the cluster.

With simple modulo-based distribution:

node = hash(key) % node_count

changing the node count changes the calculation for many keys.

3 nodes:

hash(key) % 3


Add one node:

hash(key) % 4

        ↓

many keys map to different nodes

That can trigger massive redistribution or, in a cache, a large number of misses at once.

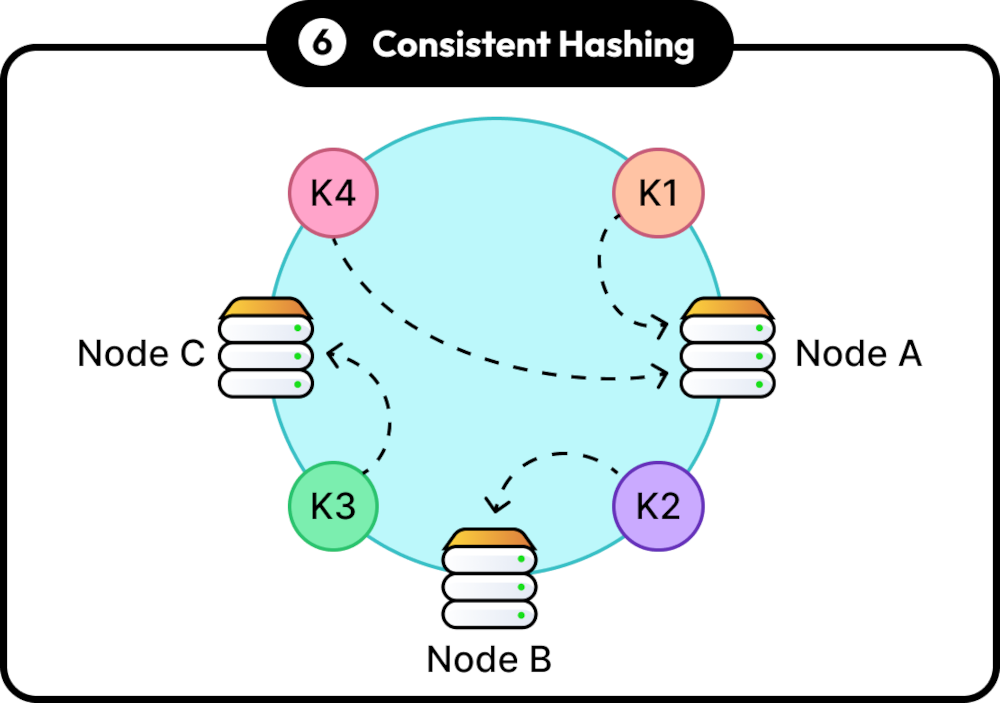

Consistent hashing places nodes and keys into a common hash space, usually visualized as a ring:

             Node A
          /          \
       K1              K2
      /                  \
 Node C                  Node B
      \                  /
       K4              K3
          \          /

Each key is assigned according to its position on the ring. When a node disappears, only the keys belonging to the affected portion of the ring need to move to another node.

Before:

A owns K1, K2
B owns K3
C owns K4


Node B fails:

A owns K1, K2
C owns K4 + affected keys from B

Most keys assigned to unaffected nodes remain where they are.

Production Example

Consider a distributed cache with 100 nodes and millions of cached objects.

If one cache node fails, a poorly chosen partitioning algorithm could invalidate a large portion of the cache mapping. Requests would suddenly miss the cache and hit the database:

Cache Node Failure
       │
       ↓
Massive Key Remapping
       │
       ↓
Cache Miss Spike
       │
       ↓
Database Traffic Spike
       │
       ↓
Database Overload

Consistent hashing limits remapping to a much smaller part of the keyspace.

This makes cluster membership changes less disruptive and reduces the chance that one node failure produces a secondary database failure.

Production implementations commonly use multiple virtual positions per physical node to improve distribution balance.

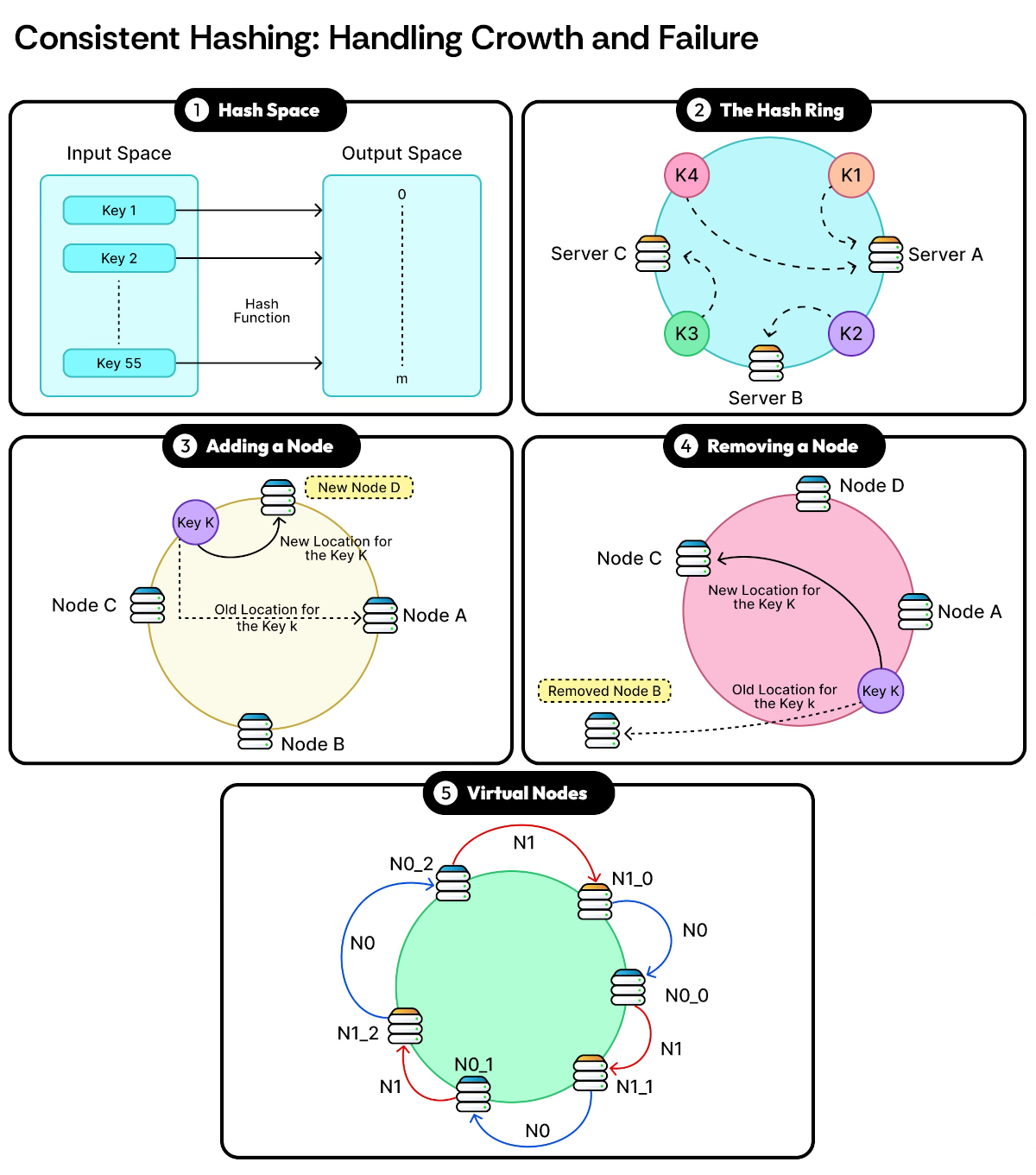

What Is Consistent Hashing? covers the hash space, hash ring, node addition and removal, and virtual nodes in detail.

How These Strategies Work Together

The six strategies address different failure modes and become much more useful when combined.

Clients
   │
   ↓
Rate Limiter
   │
   ↓
Load Balancer
   │
   ├──→ API Instance A
   ├──→ API Instance B
   └──→ API Instance C
             │
             ↓
      Service Discovery
             │
             ↓
       Circuit Breaker
             │
             ↓
      Downstream Service
             │
             ↓
       Replicated Data

A distributed cache in the same architecture might use consistent hashing to spread keys across cache nodes.

Each layer protects against a different problem:

These mechanisms should not be treated as interchangeable. Replication cannot prevent a retry storm. A circuit breaker cannot recover lost data. A load balancer cannot protect an overloaded database from unlimited traffic.

Reliability comes from covering failure modes across the complete request path.

Choosing the Right Strategies

Reliability design should begin with concrete failure scenarios rather than adding patterns because they are common.

For every important component, consider:

What can fail?
      │
      ↓
How is failure detected?
      │
      ↓
What happens to in-flight requests?
      │
      ↓
Is another component available?
      │
      ↓
How is traffic redirected?
      │
      ↓
Can the system operate in degraded mode?
      │
      ↓
How does recovery happen?

For example, an API tier might require load balancing because individual instances are replaceable.

A database may require replication because its data cannot simply be recreated by starting another empty process.

A downstream recommendation API may require a circuit breaker because recommendations can be omitted when that dependency fails.

A payment provider may require timeouts and carefully controlled retries because simply ignoring the operation is not acceptable.

The failure semantics of each dependency determine the appropriate strategy.

Common Mistakes

• Adding redundancy without automatic failover. A backup component provides little immediate resilience if traffic cannot reach it during failure.
• Running replicas in the same failure domain. Several copies on one machine or one availability zone can still fail together.
• Using health checks that only test whether a process exists. A process can be alive while unable to serve real requests.
• Retrying every failure immediately. Retries can amplify an outage and overload an already unhealthy dependency.
• Using circuit breakers without timeouts. Requests can still remain blocked too long before failures are recorded.
• Ignoring replication lag. Replicas may be available while serving stale data.
• Applying only global rate limits. One tenant can consume shared capacity before a system-wide threshold is reached.
• Hard-coding service addresses. Dynamic infrastructure requires a reliable discovery mechanism.
• Using naive modulo hashing for frequently changing clusters. Membership changes can cause excessive key redistribution.
• Assuming high availability means correctness. A system can remain online while returning stale, duplicated, or incorrect results.
• Testing only normal operation. Reliability mechanisms need explicit failure and recovery testing.

Production Checklist

• Identify single points of failure.
• Define acceptable availability and recovery objectives.
• Run critical components across independent failure domains.
• Replicate critical persistent data.
• Define database failover behavior.
• Monitor replication health and replication lag.
• Use health-aware load balancing.
• Separate liveness from readiness where appropriate.
• Set explicit network and dependency timeouts.
• Use bounded retries with backoff for retryable failures.
• Use circuit breakers for unstable remote dependencies.
• Apply rate limits before overloaded components collapse.
• Isolate abusive or unexpectedly busy tenants.
• Use service discovery for dynamic service instances.
• Design partitioning for node addition and removal.
• Monitor degraded-mode behavior.
• Test dependency failures deliberately.
• Test complete availability-zone or node failures.
• Verify recovery, not only failure detection.
• Alert on symptoms that affect users, not only infrastructure metrics.

Frequently Asked Questions

Reliability mechanisms overlap, but each protects the system from a different class of failure. The important design task is understanding what happens when each dependency becomes slow, unavailable, overloaded, or inconsistent.

Are Reliability and Availability the Same?

No. Availability describes whether a system is accessible and capable of serving requests at a particular time. Reliability is broader and includes whether the system consistently performs its intended behavior over time.

A service can technically be available while frequently returning incorrect responses, excessive errors, or unusably slow results.

Is Redundancy Enough for Fault Tolerance?

No. Redundancy provides alternative components, but the system must also detect failures and route work to healthy alternatives.

Redundancy
+
Failure Detection
+
Failover
+
Recovery
=
Practical Fault Tolerance

Multiple replicas that cannot be promoted or reached during an outage do not provide effective failover.

Which Reliability Strategy Should Be Added First?

Start with the largest realistic failure risks and single points of failure.

For a stateless API, that may mean multiple instances behind a health-aware load balancer. For persistent data, replication and tested recovery may be more important. For dependency-heavy microservices, timeouts, retries, and circuit breakers may deserve immediate attention.

Can a Fault-Tolerant System Still Fail?

Yes. Fault tolerance reduces the impact of specific expected failures; it does not make failure impossible.

Correlated failures, software bugs, capacity exhaustion, configuration errors, data corruption, regional outages, and incorrect failover behavior can still cause an outage. Reliability therefore requires multiple layers of protection plus continuous testing and monitoring.

Conclusion

Reliable architectures assume components will fail and provide controlled ways to continue operating. Data replication protects against storage-node failures, circuit breakers isolate unhealthy dependencies, load balancers route around failed application instances, rate limiting protects capacity, service discovery tracks dynamic endpoints, and consistent hashing reduces disruption when partition nodes change.

These strategies are most effective as complementary layers rather than isolated patterns. The goal is not to prevent every component from failing. The goal is to prevent individual failures from becoming system-wide failures.

Key takeaway: fault tolerance comes from detecting failures, containing their impact, maintaining alternative paths, and recovering without taking the entire system down.

More Articles to Read

• Building Reliable Systems: Core Reliability Patterns Explained
• Failure Recovery in Distributed Systems
• Designing Graceful Degradation Strategies
