Kubernetes Explained: Pods, Nodes, and Clusters

Kubernetes turns a pool of compute resources into a platform where applications can be scheduled, restarted, replicated, and moved without tying application architecture to individual servers. The core abstraction is not a virtual machine or even a container. It is a hierarchy of clusters, nodes, and pods controlled through a continuously reconciled desired state.

Understanding these abstractions is essential for production design because failures happen at different boundaries. A container can crash while its pod survives, a pod can disappear while the application remains available, and an entire node can fail while Kubernetes reschedules workloads elsewhere. Good Kubernetes architecture depends on designing applications around those failure boundaries rather than treating Kubernetes as a more complicated process manager.

This article focuses on how pods, nodes, and clusters interact, what Kubernetes actually does when failures occur, and which production decisions affect availability, scalability, latency, capacity, and operational complexity.

Table of Contents

• Kubernetes Resource Model
  • Desired State and Reconciliation
  • Control Plane and Worker Nodes
• Pods: The Runtime Unit
  • Containers Inside a Pod
  • Pod Lifecycle and Failure
• Nodes: The Compute Layer
  • Node Components
  • Scheduling and Resource Capacity
• Clusters and Failure Domains
  • Cluster Architecture
  • What Happens When a Node Fails
• Production Design Example
  • Application Layout
  • Failure and Scaling Behavior
• Common Mistakes
• Production Checklist
• Conclusion
• More Articles to Read

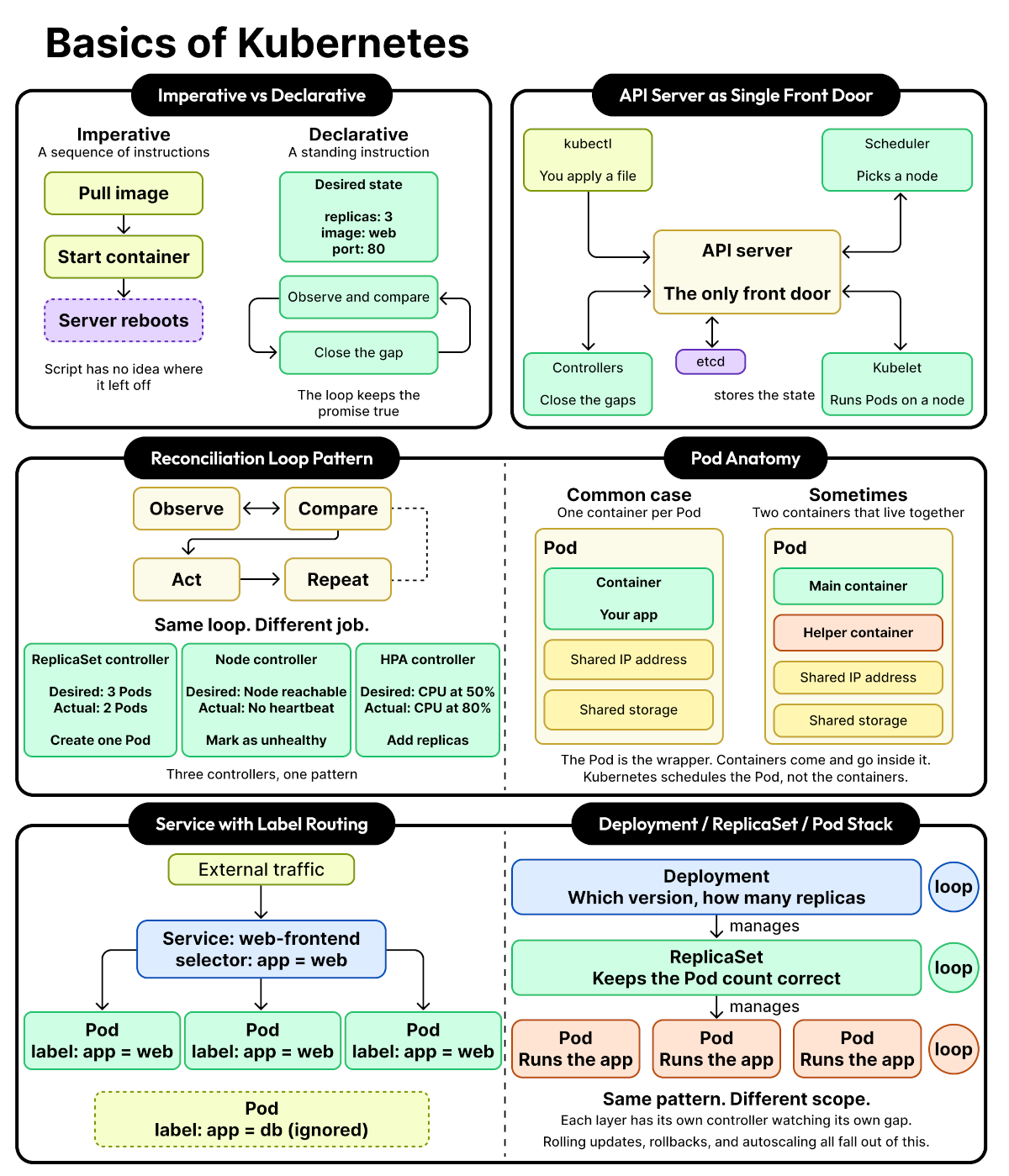

Kubernetes Resource Model

Kubernetes operates as a desired-state system. Instead of issuing commands such as "start this container on server 12," an application declares what should exist: three replicas, a container image, CPU and memory requirements, network exposure, storage, and health conditions.

The Kubernetes control plane continuously compares that desired state with the actual state of the cluster. Differences trigger corrective actions. This reconciliation model is the foundation for self-healing, rolling deployments, autoscaling, and workload rescheduling.

Desired State and Reconciliation

Consider an application that requires three API instances. The desired state might eventually be represented by a Deployment, but the important concept is that Kubernetes continuously attempts to maintain three runnable pods.

Desired state
    |
    | 3 API replicas
    v
Kubernetes Control Plane
    |
    | schedules workloads
    v
+-----------+  +-----------+  +-----------+
|   Pod A   |  |   Pod B   |  |   Pod C   |
| API       |  | API       |  | API       |
+-----------+  +-----------+  +-----------+
     |              |              |
   Node 1         Node 2         Node 3

If Pod B disappears, the important event is not the loss of that specific pod. The important event is that actual replicas = 2 while desired replicas = 3. A controller detects the difference and creates a replacement.

This changes the application design model. Pods should generally be treated as replaceable runtime instances, not long-lived servers with identities that application operators manually repair.

Control Plane and Worker Nodes

A Kubernetes cluster separates orchestration decisions from application execution. The control plane stores cluster state and makes scheduling and reconciliation decisions, while worker nodes provide CPU, memory, networking, and local runtime capacity.

This separation makes Kubernetes capable of managing hundreds or thousands of application instances without requiring each instance to be manually assigned to infrastructure.

Pods: The Runtime Unit

A pod is the smallest workload unit Kubernetes schedules. Kubernetes does not normally schedule containers independently. It schedules pods containing one or more containers.

Containers inside the same pod share important runtime boundaries, including the pod network namespace. They are therefore tightly coupled from a lifecycle and placement perspective.

Containers Inside a Pod

The common production pattern is one primary application container per pod. Additional containers are appropriate when they must share the lifecycle and local environment of the primary application.

For example, an API container might run with a sidecar that performs a tightly coupled supporting function:

apiVersion: v1
kind: Pod
metadata:
  name: orders-api
spec:
  containers:
    - name: api
      image: registry.example.com/orders-api:2.4.1
      ports:
        - containerPort: 8000
      resources:
        requests:
          cpu: "500m"
          memory: "512Mi"
        limits:
          memory: "1Gi"

    - name: proxy
      image: registry.example.com/internal-proxy:1.8.0
      resources:
        requests:
          cpu: "50m"
          memory: "64Mi"
        limits:
          memory: "128Mi"

Both containers are scheduled onto the same node. They are not independently scalable. Increasing the API from 5 to 20 replicas also creates 20 proxy containers.

That coupling is useful for true sidecars but harmful when two independently scalable services are placed inside one pod.

Rule of thumb: containers belong in the same pod when they need the same scheduling, lifecycle, and scaling boundary. Otherwise, they should usually be separate workloads.

Pod Lifecycle and Failure

Pods are intentionally disposable. A replacement pod is generally a new resource with a new identity and potentially a different IP address.

This means application architecture should not depend on a particular pod continuing to exist. Session state, durable files, queues, and authoritative application data generally need storage or services outside the pod's ephemeral lifecycle.

Replacement is not instantaneous. Failure detection, scheduling, image pulling, container startup, application initialization, and readiness checks all contribute to recovery time.

For latency-sensitive services, startup time is therefore part of availability engineering. A service requiring three minutes to initialize has very different failure behavior from one becoming ready in five seconds.

Nodes: The Compute Layer

A node is a machine providing compute resources to the cluster. Depending on the environment, it may be a physical server or virtual machine. Kubernetes treats nodes as a shared capacity pool rather than requiring applications to target particular machines.

Nodes are still real failure and resource boundaries. CPU saturation, memory pressure, disk exhaustion, network problems, kernel failures, or infrastructure termination can affect every pod placed on a node.

Node Components

Several components allow a node to participate in the cluster. The most important conceptual pieces are the node agent, container runtime, and networking implementation.

• kubelet communicates with the control plane and ensures assigned pods are running.
• Container runtime starts and manages containers.
• Network components implement pod and service connectivity.
• Node operating system provides CPU, memory, filesystem, kernel, and networking resources.

The application still depends on all of these layers even though Kubernetes abstracts them. A healthy application container cannot compensate for a node whose network stack is failing or whose disk is exhausted.

Scheduling and Resource Capacity

The scheduler decides where a pod should run. One of the most important inputs is the pod's resource requests.

If a container requests 500 millicores of CPU and 512 MiB of memory, Kubernetes uses those values when deciding whether a node has enough allocatable capacity.

resources:
  requests:
    cpu: "500m"
    memory: "512Mi"
  limits:
    cpu: "2"
    memory: "1Gi"

Requests and limits solve different problems. Requests influence scheduling and guaranteed capacity assumptions, while limits constrain runtime resource consumption.

Understated requests can cause too many workloads to be packed onto the same node. Overstated requests waste cluster capacity because Kubernetes may consider resources unavailable even when applications rarely consume them.

Consider a node with approximately 8 GiB allocatable memory:

Node: 8 GiB allocatable memory

Pod A request: 2 GiB
Pod B request: 2 GiB
Pod C request: 1 GiB
Pod D request: 1 GiB
------------------------
Requested:     6 GiB
Remaining:     2 GiB

The scheduler reasons primarily from declared requests, not optimistic assumptions about future usage. Accurate requests therefore affect cost, density, scheduling reliability, and autoscaling behavior.

Resource management becomes particularly important when cluster capacity is shared by APIs, workers, batch jobs, and memory-heavy workloads. Poor resource declarations can turn a local traffic spike into node-wide contention.

Clusters and Failure Domains

A cluster combines the control plane and worker nodes into one orchestration environment. From the application perspective, it provides a pool of compute capacity and an API for declaring workload state.

A cluster should not be interpreted as an infinite resource pool. Its reliability depends on the number and placement of nodes, control-plane availability, network architecture, spare capacity, and external infrastructure such as load balancers and persistent storage.

Cluster Architecture

A production cluster commonly distributes workloads across multiple nodes and, where infrastructure supports it, multiple availability zones.

                    External Traffic
                           |
                    Load Balancer
                           |
                  Kubernetes Services
                           |
          +----------------+----------------+
          |                |                |
      +--------+        +--------+        +--------+
      | Node A |        | Node B |        | Node C |
      | Zone 1 |        | Zone 2 |        | Zone 3 |
      +--------+        +--------+        +--------+
      | API    |        | API    |        | API    |
      | Worker |        | Worker |        | Worker |
      +--------+        +--------+        +--------+
          \                |                /
           +---------------+---------------+
                           |
                External Databases / Queues

Multiple replicas provide limited value if all replicas are scheduled onto the same node. The same problem appears one level higher when every node resides in the same infrastructure failure domain.

Production scheduling therefore needs to consider failure-domain distribution, not only replica count.

Highly available cloud architecture and infrastructure failure domains are covered in greater depth here: Designing Highly Available Cloud Systems.

What Happens When a Node Fails

Suppose an API has six replicas spread across three nodes. If one node disappears, the pods on that node disappear from useful capacity.

Kubernetes does not move the existing running processes. Controllers eventually create replacement pods, and the scheduler places those pods onto healthy nodes with sufficient capacity.

1. The node stops communicating with the control plane.
2. Kubernetes detects that the node is unhealthy or unreachable.
3. Pods on the failed node stop serving useful traffic.
4. Controllers observe missing workload replicas.
5. Replacement pods are created.
6. The scheduler selects healthy nodes.
7. Container images are available or pulled.
8. Applications start and initialize.
9. Readiness checks succeed.
10. Replacement pods begin receiving traffic.

This recovery requires spare capacity. If every healthy node already operates near its requested-resource capacity, replacement pods may remain Pending after a node failure.

That creates an important production trade-off: maximum node utilization reduces infrastructure cost, but maintaining unused capacity improves failure recovery. A cluster designed to survive one node loss must have enough remaining capacity to absorb workloads from that node.

Node failure also exposes hidden state assumptions. Data written only to a pod's writable filesystem may disappear with the pod or become inaccessible when the replacement runs elsewhere. Durable state requires an explicit storage architecture rather than reliance on container-local files.

Production Design Example

Consider a logistics platform processing shipment creation, carrier rates, tracking events, and background synchronization. The application contains latency-sensitive APIs and asynchronous workers with very different scaling characteristics.

Putting every process into the same pod would couple their scaling and failure behavior. A better design uses separate workloads while allowing Kubernetes to schedule them across the shared cluster.

Application Layout

A simplified production layout could contain:

• Shipment API — stateless HTTP workload with multiple replicas.
• Rate API — independently scalable latency-sensitive service.
• Tracking workers — asynchronous consumers processing carrier events.
• Synchronization workers — background jobs communicating with external carrier APIs.
• External database — authoritative durable state.
• Message broker — buffers asynchronous work and absorbs temporary processing slowdowns.

The workloads have different resource profiles. HTTP services may be CPU-sensitive during traffic spikes, while synchronization workers can consume significant memory and network capacity when processing large batches.

Each workload should therefore declare resources independently:

apiVersion: v1
kind: Pod
metadata:
  name: shipment-api
  labels:
    app: shipment-api
spec:
  containers:
    - name: shipment-api
      image: registry.example.com/shipment-api:4.7.2
      ports:
        - containerPort: 8000
      resources:
        requests:
          cpu: "500m"
          memory: "512Mi"
        limits:
          cpu: "1500m"
          memory: "1Gi"
      readinessProbe:
        httpGet:
          path: /health/ready
          port: 8000
        initialDelaySeconds: 5
        periodSeconds: 5
      livenessProbe:
        httpGet:
          path: /health/live
          port: 8000
        initialDelaySeconds: 15
        periodSeconds: 10

The readiness probe prevents the pod from receiving traffic before the application can serve requests. The liveness probe detects a process that remains running but can no longer make progress.

Health checks must be designed carefully. A liveness endpoint that fails whenever a remote database experiences a short outage can restart every application replica simultaneously, turning a database incident into an application-wide restart storm. More about health-check semantics can be found here: Health Checks, Readiness, and Liveness Probes.

Failure and Scaling Behavior

Suppose the shipment API runs nine pods across three worker nodes. Normal traffic is approximately 3,000 requests per second, and each node hosts three API pods plus several background workers.

If one node fails, approximately one-third of API capacity may disappear immediately. Traffic is routed to remaining ready pods while Kubernetes creates replacements.

The resulting recovery behavior depends on several engineering decisions:

• Replica distribution: replicas spread across nodes reduce correlated loss.
• Spare node capacity: healthy nodes must have room for replacements.
• Application startup time: faster initialization reduces degraded-capacity duration.
• Image availability: large uncached images increase recovery latency.
• Readiness behavior: traffic must not reach partially initialized instances.
• Database capacity: remaining pods may create more connections and queries per instance.
• Queue buffering: asynchronous work can accumulate instead of being dropped while workers recover.

A node failure can therefore create secondary bottlenecks even when Kubernetes successfully replaces pods. Remaining API replicas receive more traffic, connection pools become busier, CPU utilization rises, and queue consumers may temporarily fall behind.

Monitoring should capture both infrastructure and workload effects:

• ready versus desired pod count
• Pending and unschedulable pods
• node CPU and memory pressure
• container restarts and OOM kills
• request latency and error rate
• application saturation
• database connection utilization
• queue depth and consumer lag
• pod startup and readiness duration
• node availability and scheduling capacity

The central production lesson is that Kubernetes can restore desired state, but it cannot create missing infrastructure capacity or fix application bottlenecks. Reliability still depends on capacity planning, workload isolation, application architecture, and downstream dependencies.

Common Mistakes

Most serious Kubernetes problems involving pods and nodes come from incorrect assumptions about failure boundaries, scheduling, and resource capacity rather than from YAML syntax.

Production Checklist

Pods, nodes, and clusters should be configured around measured workload behavior and explicit failure assumptions rather than default settings.

• Define resource requests. Base CPU and memory requests on realistic production measurements.
• Set memory limits carefully. Include enough headroom for expected traffic and temporary memory spikes.
• Distribute replicas. Avoid concentrating critical replicas on one node or infrastructure failure domain.
• Maintain recovery capacity. Verify that workloads can be rescheduled after losing the expected number of nodes.
• Externalize durable state. Never depend on a pod's writable filesystem for authoritative data.
• Measure startup latency. Track the time from scheduling through readiness because it directly affects recovery.
• Keep images efficient. Large container images increase deployment, scaling, and failure-recovery time.
• Separate readiness and liveness. Traffic eligibility and process recovery represent different failure conditions.
• Monitor Pending pods. Unschedulable workloads often reveal capacity, resource-request, or placement problems.
• Alert on container restarts. Repeated restarts can expose crashes, memory pressure, probe failures, or configuration problems.
• Monitor node pressure. Track memory, CPU, filesystem, and networking saturation at the node level.
• Test node loss. Validate actual rescheduling time, remaining application capacity, and downstream behavior.
• Measure workload saturation. CPU utilization alone is insufficient; monitor request latency, queue depth, connection pools, and application-specific bottlenecks.
• Plan dependency capacity. Confirm databases, caches, and brokers tolerate traffic redistribution when application replicas fail.

Conclusion

Kubernetes architecture becomes easier to reason about once the failure boundaries are clear. Containers execute processes, pods define tightly coupled runtime units, nodes provide compute capacity, and clusters coordinate those resources through desired-state reconciliation.

Pods should be disposable, nodes should be expected to fail, and clusters should contain enough distributed capacity to recover from those failures. Kubernetes automates replacement and scheduling, but application availability still depends on resource sizing, replica distribution, startup behavior, dependency capacity, observability, and sound state management.

Key Takeaway: Kubernetes does not eliminate infrastructure failures. It provides abstractions and control loops that make failures manageable when applications are designed around replaceable pods, unreliable nodes, and explicitly planned cluster capacity.
