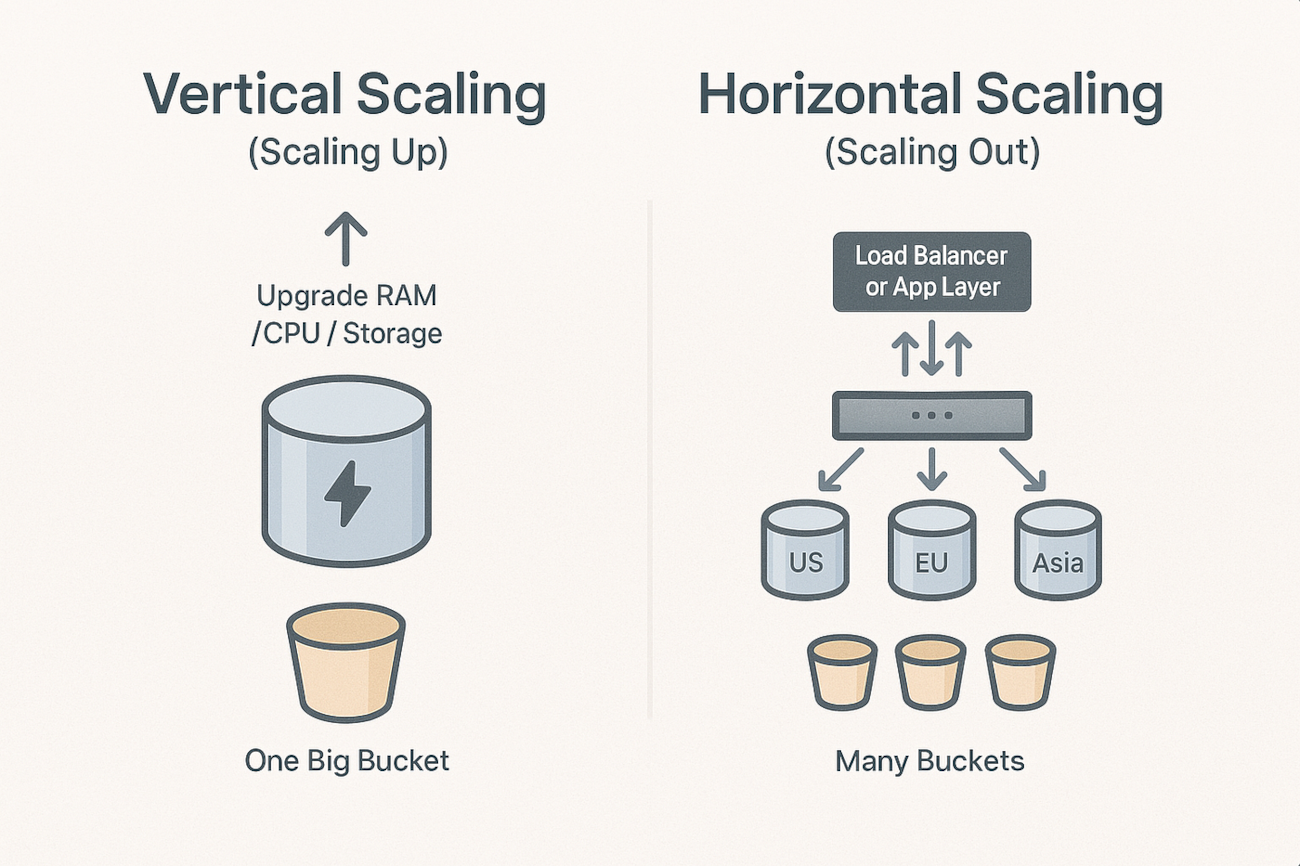

Database Scaling Explained: Vertical vs Horizontal Scaling

Database performance problems rarely appear because a database suddenly becomes slow. They emerge as data volume, concurrent connections, transaction rates, analytical queries, and background jobs gradually exceed the capacity of the original design.

Two primary strategies increase database capacity: vertical scaling, which makes one database server more powerful, and horizontal scaling, which distributes workload across multiple servers. Both can support production growth, but they solve different bottlenecks and introduce very different operational trade-offs.

Table of Contents

• Why Database Scaling Matters
• Identify the Real Bottleneck First
• Vertical Scaling
  • How Vertical Scaling Works
  • Advantages
  • Disadvantages
  • When to Use Vertical Scaling
  • Production Example
• Horizontal Scaling
  • How Horizontal Scaling Works
  • Advantages
  • Disadvantages
  • When to Use Horizontal Scaling
  • Production Example
• Vertical vs Horizontal Scaling
• Common Horizontal Scaling Patterns
• Read Replicas
  • Read Routing Example
• Database Sharding
  • Shard Routing Example
• Distributed Databases
• Combining Both Strategies
• Capacity Planning
• Reliability and Failure Behaviour
• Migration Strategy
• Monitoring Database Scaling
• Common Mistakes
• Production Checklist
• Conclusion
• Key Takeaway
• More Articles to Read

Why Database Scaling Matters

A database must handle more than user-facing requests. Production systems also execute scheduled jobs, event consumers, reporting queries, data exports, schema migrations, backups, index maintenance, and replication.

As load grows, these activities compete for the same CPU, memory, storage, locks, and network bandwidth. The result is usually not a complete outage at first. It is increasing latency, unstable throughput, replication lag, timeout spikes, or reduced availability during peak traffic.

Typical warning signs include:

• CPU usage remains above 70–80% during sustained traffic.
• Database memory is insufficient to keep frequently used indexes and pages cached.
• Storage latency increases during writes, checkpoints, or compaction.
• Connection pools become exhausted.
• Lock waits and deadlocks increase.
• Replication lag grows during peak periods.
• Maintenance tasks take longer and interfere with application traffic.
• One tenant or query can degrade performance for the entire system.

Scaling should begin only after confirming that the database is actually the bottleneck. Poor indexes, inefficient queries, unbounded result sets, excessive connections, and badly designed transactions can make a large database instance perform worse than a smaller well-tuned one.

Identify the Real Bottleneck First

Scaling infrastructure without understanding the limiting resource often hides the problem temporarily. A CPU-bound workload requires a different solution from an I/O-bound workload, and neither is solved by adding memory alone.

Rule of thumb: optimise the workload before changing the topology. Scaling an inefficient workload increases cost and operational complexity while preserving the original inefficiency.

Vertical Scaling

Vertical scaling, also called scaling up, increases the resources of one database server. The server receives more CPU cores, more memory, faster storage, higher IOPS, or additional network bandwidth.

The application continues using the same database endpoint and schema. No data-routing layer is required, and transactional behaviour remains mostly unchanged.

How Vertical Scaling Works

Database operations consume several hardware resources:

• CPU executes query plans, joins, sorts, compression, encryption, and background maintenance.
• Memory caches indexes and data pages, reducing storage reads.
• Storage persists table data, transaction logs, temporary files, and indexes.
• Network transports queries, results, replication traffic, and backups.

A vertically scaled architecture remains simple:

Clients
   |
Application Instances
   |
Connection Pool
   |
Primary Database
- More CPU
- More RAM
- Faster storage
- Higher network bandwidth

Scaling may require an instance restart, a failover to a larger standby, or a maintenance window depending on the database platform.

Advantages

Simple architecture. Applications still communicate with one logical database endpoint. No shard routing, distributed query planning, or cross-node coordination is required.

Strong transactional semantics. Transactions remain local to one primary database, which simplifies locking, isolation, constraints, and rollback.

Minimal application changes. Existing SQL, ORMs, migrations, and reporting tools usually continue working without modification.

Lower operational overhead. Backup, restore, monitoring, schema changes, and incident response remain easier than in a distributed topology.

Fastest path to additional capacity. Increasing instance size can often provide immediate relief while longer-term architectural changes are evaluated.

Disadvantages

Finite hardware ceiling. Every instance family has a maximum CPU, memory, storage, and network capacity.

Non-linear cost. Very large instances are often disproportionately expensive compared with several smaller nodes.

Single write bottleneck. A larger primary can process more writes, but write throughput remains concentrated on one server.

Larger failure impact. When one large primary fails, a significant portion of the system may become unavailable until failover completes.

Maintenance risk. Instance upgrades, operating-system changes, and database upgrades may require restart or failover events.

When to Use Vertical Scaling

Vertical scaling is usually appropriate when:

• The database still fits comfortably within the capacity of larger available instances.
• Strong consistency and complex transactions are important.
• The workload is primarily OLTP.
• The team wants to minimise distributed-system complexity.
• Growth is predictable and does not require extreme write throughput.
• A near-term capacity problem must be solved quickly.

A single well-tuned PostgreSQL, MySQL, or SQL Server instance can support substantial production traffic. Horizontal scaling should not be introduced merely because the application has become important.

Production Example

Consider a PostgreSQL database running on 4 vCPUs, 16 GB RAM, and general-purpose SSD storage. Monitoring shows that frequently accessed indexes no longer fit in memory and CPU reaches 90% during peak traffic.

The instance is upgraded to 32 vCPUs, 128 GB RAM, and provisioned IOPS storage:

database:
  engine: postgresql
  version: "16"
  instance_class: db.r7g.8xlarge

  storage:
    type: io2
    size_gb: 2000
    provisioned_iops: 30000

  high_availability:
    multi_zone: true

  # Keep application connections bounded.
  connection_pool:
    max_connections: 300

The larger memory allocation improves cache hit rate, additional CPU supports more concurrent query execution, and faster storage reduces checkpoint and write latency.

This change may postpone architectural redesign for months or years, but it does not remove the need to monitor future growth.

Horizontal Scaling

Horizontal scaling, also called scaling out, adds more database nodes and distributes traffic, data, or both across them.

Horizontal scaling can increase read capacity, write capacity, storage capacity, and regional availability. However, the database is no longer one physical machine, so coordination, routing, consistency, and failure handling become part of the architecture.

How Horizontal Scaling Works

Horizontal scaling is not one specific technology. It is an architectural category that includes several patterns:

• Read replicas distribute read traffic while writes remain on one primary.
• Sharding distributes different subsets of data across independent database nodes.
• Distributed SQL spreads data across nodes while exposing a SQL interface and coordinated transactions.
• NoSQL partitioning distributes keys and replicas across a cluster.

A simplified horizontally scaled architecture looks like:

                    Application
                         |
                 Database Router
                         |
        +----------------+----------------+
        |                |                |
     Node A           Node B           Node C
   Data range 1     Data range 2     Data range 3

The routing layer may be implemented by the application, a proxy, a database driver, or the database platform itself.

Advantages

Higher aggregate capacity. Additional nodes can increase read throughput, write throughput, and storage capacity.

Reduced dependence on one machine. Data and traffic can be distributed across multiple failure domains.

Elastic growth. Some platforms allow nodes or partitions to be added as traffic grows.

Regional placement. Data can be replicated or partitioned closer to users, reducing latency and improving resilience.

Workload isolation. Reads, writes, analytical workloads, tenants, or regions can be separated onto different nodes.

Disadvantages

Distributed consistency. Replication lag, quorum behaviour, stale reads, and conflict resolution may affect application correctness.

Routing complexity. The system must determine which node owns each request or data record.

Cross-node operations. Joins, aggregates, constraints, and transactions become more expensive when data spans multiple nodes.

Operational overhead. Rebalancing, backup coordination, schema deployment, failover, and monitoring are more complex.

Uneven distribution. Poor partition keys can create hot shards that overload one node while others remain underused.

When to Use Horizontal Scaling

Horizontal scaling is appropriate when:

• A single server cannot provide enough storage or throughput.
• Read traffic can be separated from write traffic.
• Data can be partitioned by tenant, account, region, or another stable key.
• Global latency requirements justify regional replicas or partitions.
• Failure isolation is more important than architectural simplicity.
• Growth is expected to exceed the practical limits of vertical scaling.

Horizontal scaling should be introduced for a measured requirement, not as a default design preference.

Production Example

A multi-tenant SaaS platform stores customer events. One primary database can no longer sustain the write rate, and the largest available instance would only provide temporary relief.

The data is partitioned by account_id across four shards:

account_id hash % 4

0 -> shard-0
1 -> shard-1
2 -> shard-2
3 -> shard-3

Each account remains on one shard, so account-scoped transactions stay local. Aggregate reporting is moved to a separate analytics system instead of executing cross-shard queries against production databases.

Vertical vs Horizontal Scaling

Neither strategy is universally better. The correct choice depends on workload shape, growth rate, consistency requirements, operational maturity, and failure tolerance.

Practical sequence: optimise queries, scale vertically, add read replicas, isolate workloads, and introduce sharding only when measured limits justify it.

Common Horizontal Scaling Patterns

Horizontal scaling can distribute reads, writes, storage, or geographic traffic. Each pattern solves a different bottleneck.

Read Replicas

Read replicas copy changes from a primary database and serve read-only traffic. Writes continue going to the primary, while reporting, search pages, dashboards, and other read-heavy endpoints can use replicas.

                    Application
                         |
              +----------+----------+
              |                     |
           Writes                  Reads
              |                     |
           Primary        +--------+--------+
                          |                 |
                      Replica A         Replica B

The main trade-off is replication lag. A write committed on the primary may not immediately appear on a replica.

Read replicas work well when stale data is acceptable for a brief period. They are risky for flows that require read-after-write consistency, such as immediately loading a newly created order or verifying a just-updated balance.

Read Routing Example

The application can route consistency-sensitive reads to the primary and eventually consistent reads to replicas:

from enum import Enum
from typing import Protocol


class Consistency(Enum):
    STRONG = "strong"
    EVENTUAL = "eventual"


class DatabaseConnection(Protocol):
    def execute(self, query: str, parameters: tuple = ()) -> list[dict]:
        ...


class DatabaseRouter:
    def __init__(
        self,
        primary: DatabaseConnection,
        replicas: list[DatabaseConnection],
    ) -> None:
        if not replicas:
            raise ValueError("At least one replica is required")

        self.primary = primary
        self.replicas = replicas
        self._next_replica = 0

    def connection_for_read(
        self,
        consistency: Consistency,
    ) -> DatabaseConnection:
        # Read-after-write and correctness-sensitive queries use the primary.
        if consistency is Consistency.STRONG:
            return self.primary

        # Round-robin routing is simple and avoids overloading one replica.
        replica = self.replicas[self._next_replica]
        self._next_replica = (self._next_replica + 1) % len(self.replicas)
        return replica

Routing logic should also consider replica health and lag. A replica that is reachable but several minutes behind should not receive normal application traffic.

Database Sharding

Sharding divides data into independent subsets stored on different database servers. Each shard contains only part of the total dataset and processes writes for that subset.

Common shard keys include:

• Tenant or account ID
• Customer ID
• Geographic region
• Device ID
• Time range
• Hash of a stable identifier

The shard key determines data distribution, query routing, transaction boundaries, and future rebalancing cost. A poor shard key can make the architecture difficult to repair.

Shard Routing Example

Hash-based routing distributes account data across shards:

import hashlib


class ShardRouter:
    def __init__(self, shard_names: list[str]) -> None:
        if not shard_names:
            raise ValueError("At least one shard is required")

        self.shard_names = shard_names

    def shard_for_account(self, account_id: str) -> str:
        # A stable hash keeps the same account on the same shard.
        digest = hashlib.sha256(account_id.encode("utf-8")).digest()
        shard_number = int.from_bytes(digest[:8], byteorder="big")
        return self.shard_names[shard_number % len(self.shard_names)]


router = ShardRouter([
    "database-shard-0",
    "database-shard-1",
    "database-shard-2",
    "database-shard-3",
])

target_shard = router.shard_for_account("account-84721")

Modulo-based routing is easy to understand but expensive to rebalance because adding a shard changes the mapping for many keys. Production systems often use consistent hashing, virtual shards, or an explicit shard map to reduce data movement.

Cross-shard queries should be avoided in latency-sensitive paths. Aggregations across all customers are better handled by a warehouse, search engine, or streaming analytics system.

Distributed Databases

Distributed databases spread data and replicas across multiple nodes while providing routing, replication, and failure handling inside the database platform.

Some distributed SQL systems support SQL queries and transactions across nodes. NoSQL systems often prioritise horizontal partitioning and predictable key-based access.

These platforms reduce application-level routing code, but they do not remove distributed-system trade-offs. Cross-node transactions require coordination, quorum decisions add latency, and network partitions affect availability or consistency.

Combining Both Strategies

Most mature database architectures combine vertical and horizontal scaling.

A common progression is:

1. Start with one primary database.
2. Optimise queries, indexes, and connection management.
3. Scale the primary vertically.
4. Add a standby for high availability.
5. Add read replicas for read-heavy traffic.
6. Move analytical workloads to a separate system.
7. Partition or shard only when the primary write path reaches a measured limit.

Even horizontally scaled systems often use large nodes. A sharded database may contain eight powerful shards rather than hundreds of small ones because fewer nodes reduce coordination and operational overhead.

                             Application
                                  |
                         Connection / Routing
                                  |
            +---------------------+---------------------+
            |                                           |
      Primary Shard A                              Primary Shard B
      Large instance                               Large instance
            |                                           |
      Read Replica A1                              Read Replica B1
      Read Replica A2                              Read Replica B2

This architecture combines vertical capacity within each shard and horizontal capacity across shards and replicas.

Capacity Planning

Database scaling decisions should be based on trends, not emergencies. Capacity planning estimates when the current architecture will reach unsafe utilisation levels.

Important inputs include:

• Peak queries per second
• Peak transactions per second
• Read-to-write ratio
• Data growth per day
• Index growth
• Replication log generation
• Connection count
• CPU and storage utilisation
• Maintenance duration
• Recovery time requirements

Capacity should include operational headroom. Running a primary at 95% CPU may appear efficient, but it leaves no room for traffic spikes, failover, index creation, backups, or query-plan regressions.

Production target: maintain enough unused capacity to survive the loss of one node or a predictable peak event without immediate degradation.

Reliability and Failure Behaviour

Scaling changes how failures affect the system.

A vertically scaled primary has a simple failure model: the primary is available or unavailable. High availability usually depends on a standby and automated failover.

A horizontally scaled system can continue operating when one node fails, but only if routing, replication, and data placement support that behaviour. A failed shard may still make one portion of the data unavailable even while the rest of the system remains healthy.

Horizontal scaling improves failure isolation only when failures are intentionally contained. Independent shards, bounded retries, health-aware routing, and tested recovery procedures are required.

Migration Strategy

Moving from one primary database to a distributed design should be incremental. A full rewrite introduces unnecessary risk.

A safer sequence is:

1. Measure workload patterns. Identify high-volume tables, read-heavy endpoints, hot tenants, and transaction boundaries.
2. Separate reads. Add replicas and route tolerant workloads first.
3. Isolate analytics. Move reporting and large scans away from the transactional primary.
4. Introduce a routing abstraction. Centralise database-selection logic before adding shards.
5. Choose a stable partition key. Prefer a key aligned with application ownership and transaction boundaries.
6. Create virtual shards. Map many logical partitions to fewer physical databases for easier rebalancing.
7. Backfill data safely. Copy existing records while validating counts, checksums, and referential consistency.
8. Use dual writes carefully. Make writes idempotent and reconcile failures instead of assuming both destinations always succeed.
9. Move traffic gradually. Migrate tenants or key ranges in controlled batches.
10. Retain rollback paths. Keep the original source authoritative until validation is complete.

A routing table can decouple application identifiers from physical database locations:

CREATE TABLE tenant_shard_map (
    tenant_id UUID PRIMARY KEY,
    shard_name VARCHAR(100) NOT NULL,
    migration_state VARCHAR(30) NOT NULL DEFAULT 'active',
    updated_at TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP
);

CREATE INDEX idx_tenant_shard_map_shard
    ON tenant_shard_map (shard_name);

This design allows one tenant to move between shards without changing its identifier.

Monitoring Database Scaling

Monitoring must reflect the chosen topology. A horizontally scaled database can appear healthy at the cluster average while one shard is overloaded.

Track metrics at both the cluster and node level:

• CPU, memory, storage latency, and network throughput per node
• Queries and transactions per second
• Slow queries and execution-plan changes
• Connection-pool utilisation
• Lock waits and deadlocks
• Replication lag per replica
• Data size and growth per shard
• Traffic distribution per shard key
• Rebalancing progress
• Backup age and restore-test results
• Failover duration
• Error rates by database node

Do not rely only on averages. Percentiles, per-node dashboards, and per-tenant metrics reveal hot spots hidden by aggregate values.

Common Mistakes

Production Checklist

• Measure the bottleneck. Confirm whether CPU, memory, storage, locks, connections, or replication is limiting throughput.
• Review slow queries. Fix the highest-cost queries before increasing infrastructure.
• Validate indexes. Remove unused indexes and add indexes that match real filtering, joining, and ordering patterns.
• Define a connection budget. Limit total database connections across all application instances and workers.
• Maintain headroom. Reserve enough capacity for traffic spikes, failover, backups, and maintenance.
• Test vertical upgrades. Measure restart, failover, and performance behaviour before resizing production.
• Classify reads by consistency. Document which endpoints may use replicas and which require the primary.
• Monitor replica lag. Remove lagging replicas from normal read routing automatically.
• Choose shard keys from access patterns. Align data placement with tenant ownership, transaction boundaries, and query routing.
• Plan for hot tenants. Support dedicated shards, tenant movement, or rate limiting for disproportionate workloads.
• Use virtual shards. Separate logical partitioning from physical database nodes to simplify rebalancing.
• Avoid cross-shard joins. Move global aggregates and analytical queries to systems designed for distributed reporting.
• Automate schema deployment. Roll out backward-compatible migrations across every shard and verify schema versions.
• Test backups per node. Confirm that every shard and replica group is included in backup and restore procedures.
• Practise failover. Measure recovery time and application behaviour during primary, replica, shard, and zone failures.
• Track data distribution. Alert when shard size, traffic, or write rate becomes unbalanced.
• Design idempotent migrations. Make backfills and dual-write processes safe to retry.
• Keep rollback paths. Preserve the previous data path until migrated traffic and data integrity are verified.

Conclusion

Vertical scaling and horizontal scaling are complementary strategies rather than competing answers.

Vertical scaling is simpler, preserves local transactions, and is often the best first response to growth. Horizontal scaling increases aggregate capacity and failure isolation, but introduces routing, replication, consistency, and operational complexity.

The most reliable production path is incremental: optimise the workload, scale the primary vertically, add read replicas, isolate non-transactional workloads, and introduce sharding or a distributed database only when measured requirements justify the change.

Key Takeaway

Use the simplest database topology that meets current reliability and capacity requirements. Scale vertically while one primary remains practical, scale reads with replicas, and scale writes horizontally only after the workload, partition key, transaction boundaries, and operational model are clearly understood.

More Articles to Read

• Replication and Read Replicas in Distributed Databases
• Database Sharding Strategies and Trade-Offs
• Designing High-Performance Database Schemas
• Partitioning Large Tables for Production Systems
• SQL vs NoSQL: Choosing the Right Database
• Database Best Practices for Scalable Applications
