API Security Patterns

API security is not a single authentication mechanism or firewall rule. A production API needs multiple security layers that protect communication, control access, limit abusive traffic, validate untrusted data, and make suspicious behavior observable.

The most important API security patterns include HTTPS, authentication and authorization, role-based access control, rate limiting and throttling, input validation, and continuous monitoring. Each pattern addresses a different part of the attack surface, so they work best together rather than as alternatives.

Table of Contents

• HTTPS
  • What HTTPS Protects
• Authentication and Authorization
  • Authentication
  • Authorization
  • JWT
• Role-Based Access Control
• Rate Limiting and Throttling
  • Rate Limiting
  • Throttling
• Input Validation
• Monitoring
• Combining the Patterns: Defense in Depth
• Production Design Example
• Common API Security Mistakes
• Production Checklist
• Frequently Asked Questions
  • Is HTTPS Enough to Secure an API?
  • What Is the Difference Between Authentication and Authorization?
  • Does a JWT Encrypt Its Payload?
  • Is Rate Limiting a Security Feature?
  • Should Input from Authenticated Users Still Be Validated?
• Conclusion
  • More Articles to Read

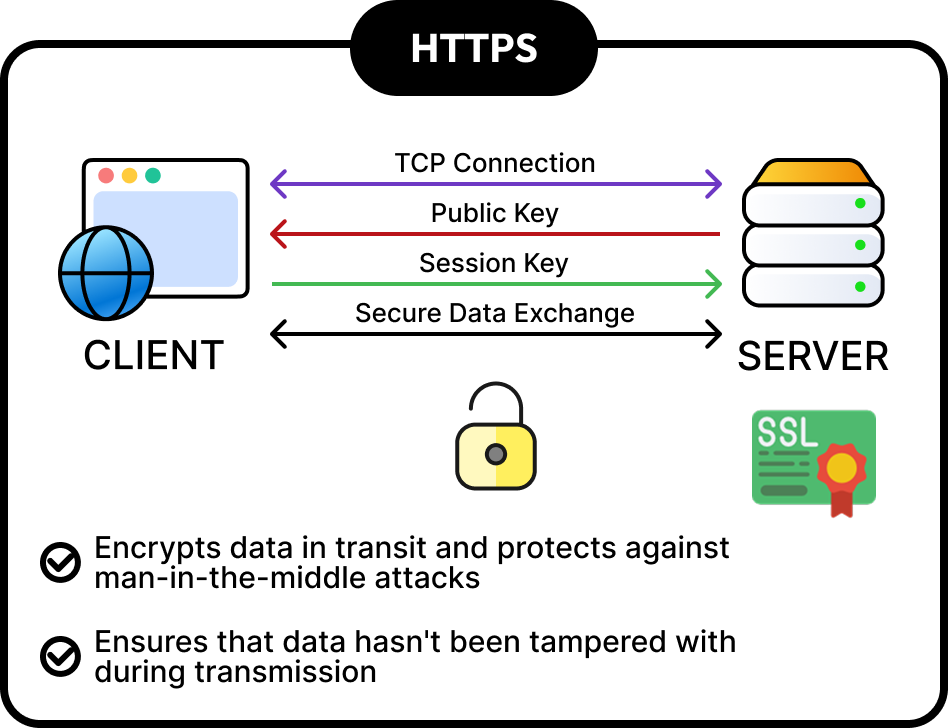

HTTPS

Every production API exposed over an untrusted network should use HTTPS. HTTPS combines HTTP with TLS to protect communication between clients and servers.

A simplified connection looks like:

After the secure session is established, application data travels through the encrypted channel.

What HTTPS Protects

HTTPS provides three important security properties:

• Confidentiality: traffic is encrypted so network observers cannot simply read API requests and responses.
• Integrity: TLS protects traffic against undetected modification while it is in transit.
• Server authentication: certificates allow clients to verify the identity associated with the server they connected to.

This helps protect APIs against traffic interception and man-in-the-middle attacks.

HTTPS does not determine whether a caller is allowed to access /admin/users, whether an input contains malicious data, or whether one client is sending excessive traffic. Those problems require additional controls.

TLS, HTTPS, and Secure Communication covers the transport-security layer in more detail.

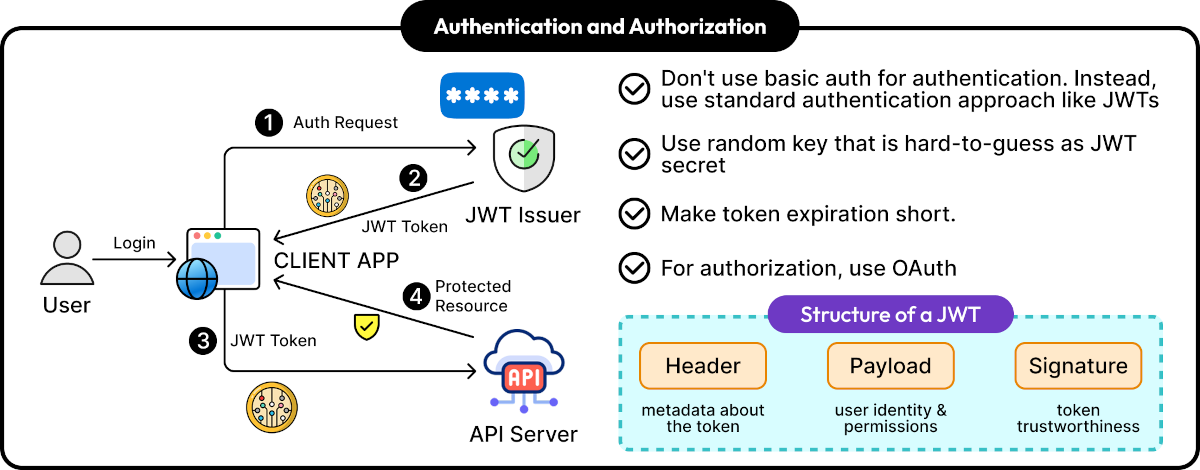

Authentication and Authorization

After protecting the connection, the API needs to determine who is making the request and what that identity is allowed to do.

These are separate security decisions.

Request
   │
   ↓
Authentication
Who is this?
   │
   ↓
Authorization
Can this identity perform this action?
   │
   ↓
API Handler

Authentication

Authentication verifies identity. Depending on the API, credentials might include OAuth access tokens, signed tokens, API keys, client certificates, or session credentials.

For example:

POST /orders

Authorization: Bearer <access-token>
                     │
                     ↓
              Validate token
                     │
              ┌──────┴──────┐
              │             │
            valid         invalid
              │             │
              ↓             ↓
          continue         401

Credentials should be transmitted only over HTTPS and should never be exposed through logs or error responses.

Authentication vs Authorization explains the distinction between identity verification and access decisions.

Authorization

Authentication alone does not mean an authenticated user can access every resource.

Consider:

GET    /orders/123
DELETE /users/918
POST   /admin/settings

The API must evaluate whether the authenticated identity has permission to perform each operation on the requested resource.

Authorization should happen server-side on every protected operation. A hidden button in a frontend is not an authorization control because clients can call the API directly.

JWT

JWT is one format commonly used to carry signed identity and authorization claims between systems.

A JWT consists of three encoded sections:

Header.Payload.Signature

Conceptually:

┌────────────┬─────────────┬─────────────┐
│   Header   │   Payload   │  Signature  │
├────────────┼─────────────┼─────────────┤
│ algorithm  │ identity    │ integrity   │
│ token type │ claims      │ protection  │
└────────────┴─────────────┴─────────────┘

An API accepting JWTs should validate more than the signature. Relevant checks typically include expiration, issuer, audience, accepted signing algorithm, and application-specific claims.

Short-lived access tokens reduce the period during which a stolen token remains useful. Signing keys and other authentication secrets should be generated securely, stored outside source code, and rotated according to an operational policy.

JWT and OAuth solve different problems and should not be treated as interchangeable technologies. OAuth 2.0 vs JWT vs API Keys compares their roles and trade-offs.

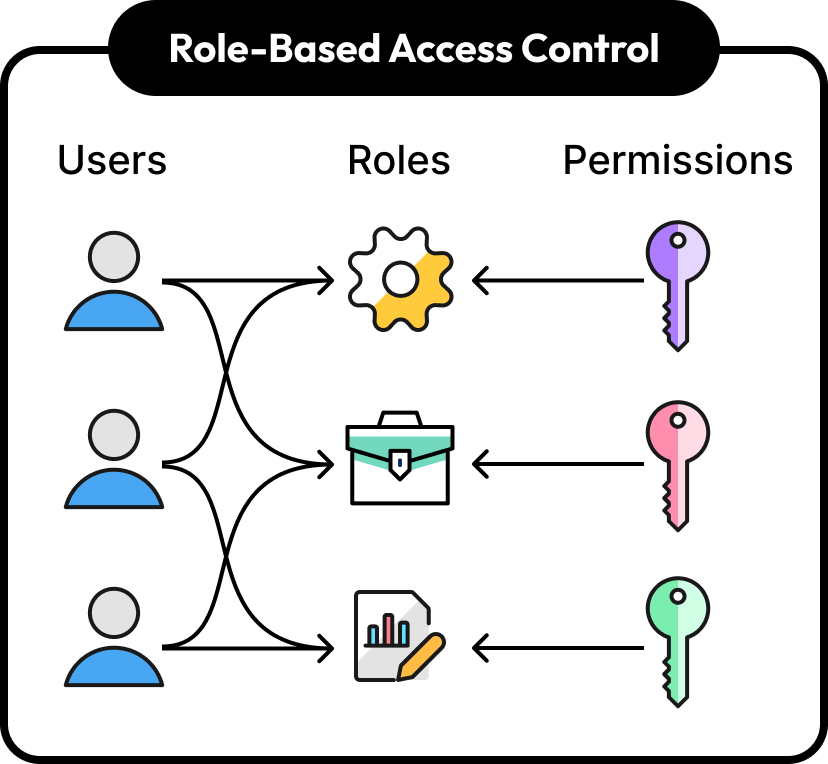

Role-Based Access Control

Role-Based Access Control (RBAC) assigns permissions to roles and roles to users or service identities. This avoids maintaining an independent permission list for every individual identity.

For example:

Users              Roles              Permissions

Alice ───────────→ Admin ───────────→ users:read
                         ├───────────→ users:write
                         └───────────→ users:delete

Bob ─────────────→ Editor ──────────→ articles:read
                         └───────────→ articles:write

Carol ───────────→ Viewer ──────────→ articles:read

An API can then enforce a permission at the endpoint or service layer:

def delete_user(current_user, user_id):
    if "users:delete" not in current_user.permissions:
        raise ForbiddenError()

    users.delete(user_id)

This supports the principle of least privilege: an identity should receive only the permissions required to perform its responsibilities.

Roles should remain meaningful. Creating hundreds of narrowly different roles can make authorization difficult to understand and audit.

RBAC also does not solve every authorization requirement. Applications may additionally need ownership checks or resource-level policies.

For example, a customer may have permission to read orders but only orders belonging to that customer:

User has orders:read
        │
        ↓
GET /orders/123
        │
        ↓
Does order 123 belong to this user?
        │
   ┌────┴────┐
   │         │
  yes        no
   │         │
   ↓         ↓
 allow      deny

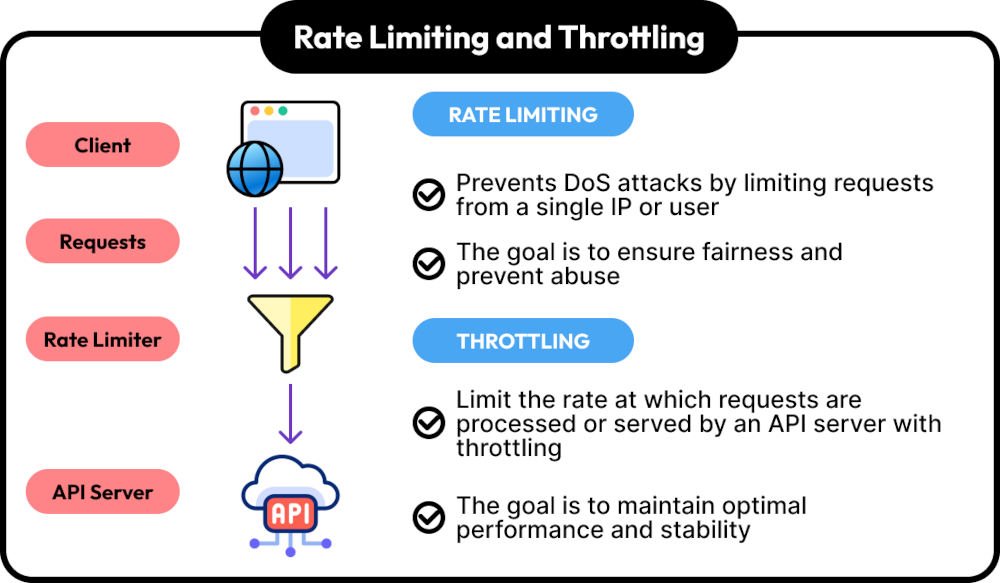

Rate Limiting and Throttling

Authentication controls who can access an API, but an authenticated client can still overload it. Rate limiting and throttling control how quickly clients can consume API capacity.

The two terms are sometimes used interchangeably, but they can represent different behaviors.

Rate Limiting

Rate limiting defines how many requests a client may make during a particular period.

Client
  │
  │ requests
  ↓
Rate Limiter
  │
  ├── within limit ──→ API
  │
  └── over limit ────→ reject

For example:

POST /login

Limit:
10 requests / minute / IP

Rate limits can be applied by IP address, authenticated user, API key, tenant, endpoint, or another identity depending on the threat and product model.

Rate limiting can reduce brute-force attempts, abusive automation, accidental request floods, and some denial-of-service pressure. It also provides fairness when multiple clients share limited backend capacity.

API Rate Limiting and Throttling Explained covers algorithms and implementation choices in more detail.

Throttling

Throttling controls the rate at which requests are allowed to proceed through the system.

Instead of allowing an unlimited burst to reach a constrained dependency, traffic can be shaped:

Incoming traffic

↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓

      Throttler
          │
          ↓
        ↓ ↓ ↓
      API Server

Depending on the implementation, excess requests may be delayed, queued, or rejected.

This protects system stability when downstream capacity is limited and can prevent one client from consuming disproportionate resources.

Security limits and capacity limits should be designed separately where appropriate. A login endpoint, expensive search endpoint, and lightweight health endpoint rarely need identical policies.

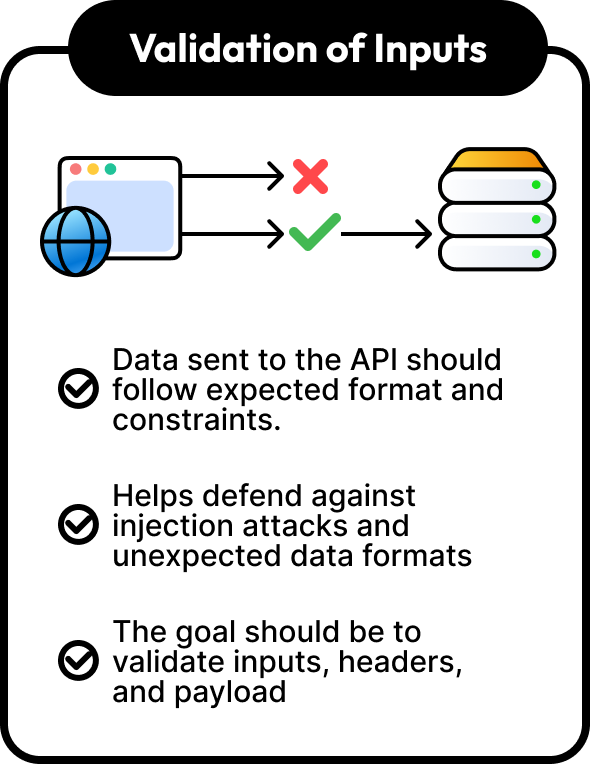

Input Validation

Every value received from an API client should be treated as untrusted input, including values sent by authenticated clients.

Validation should cover more than the JSON body:

• path parameters;
• query parameters;
• headers;
• request bodies;
• file uploads;
• content types;
• field lengths;
• numeric ranges;
• allowed enum values;
• nested object structure.

For example, a request model can define explicit constraints:

from pydantic import BaseModel, Field

class CreateOrderRequest(BaseModel):
    product_id: str = Field(min_length=1, max_length=100)
    quantity: int = Field(ge=1, le=100)

A request such as:

{
  "product_id": "",
  "quantity": -500
}

should fail validation before it reaches business logic.

Validation helps reduce unexpected application states and provides one layer of defense against injection attacks and malformed input. It should be combined with context-specific protections such as parameterized SQL queries rather than treated as a replacement for them.

Validation rules should also enforce business boundaries:

Input
  │
  ↓
Syntax valid?
  │
  ↓
Type valid?
  │
  ↓
Range valid?
  │
  ↓
Business constraint valid?
  │
  ↓
Process request

Request-size limits are another important control. An API that expects a 20 KB JSON document should not silently accept a multi-gigabyte request.

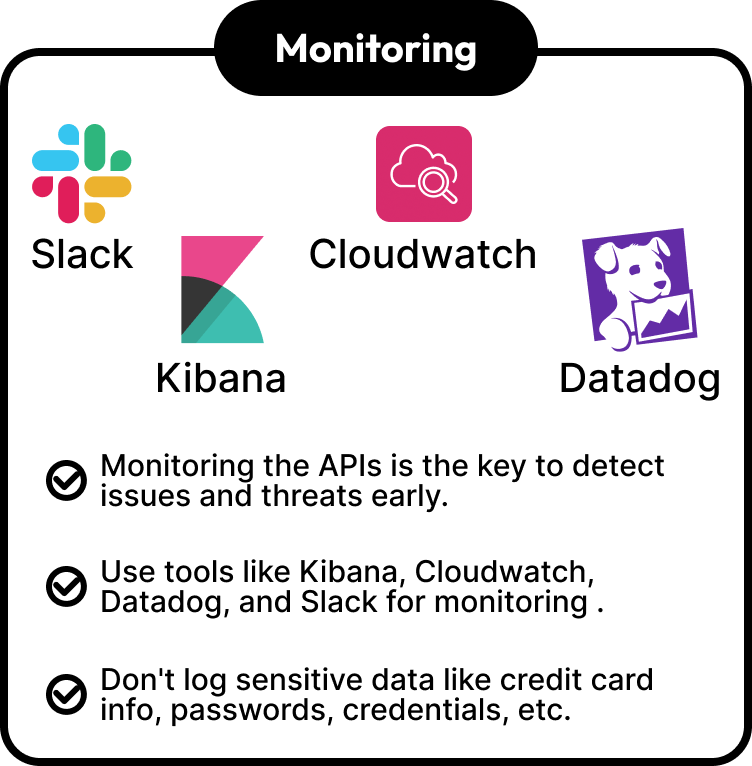

Monitoring

Preventive controls cannot stop every failure or attack. Production APIs therefore need monitoring that can reveal suspicious behavior and security-control failures early.

Useful security signals include:

• authentication failures;
• authorization failures;
• rate-limit violations;
• unusual request volume;
• unexpected HTTP status spikes;
• input-validation failures;
• requests to sensitive endpoints;
• changes in traffic patterns;
• latency and dependency failures.

A typical flow is:

API
 │
 ├── logs ──────┐
 ├── metrics ───┼──→ Monitoring / Analysis
 └── traces ────┘              │
                               ↓
                         Alerts / Investigation

Monitoring systems such as CloudWatch, Datadog, Kibana-based stacks, and notification channels such as Slack can participate in this operational pipeline.

Logs themselves create a security risk if handled carelessly. Passwords, raw credentials, access tokens, API keys, session cookies, and sensitive payment data should not be written into normal application logs.

Structured logs can include useful context without exposing secrets:

{
  "event": "authorization_denied",
  "request_id": "req-91827",
  "user_id": "usr-4812",
  "method": "DELETE",
  "path": "/users/123",
  "status": 403
}

Observability Best Practices for Production Systems covers monitoring, logging, tracing, and alerting in greater depth.

Combining the Patterns: Defense in Depth

No individual pattern protects an API from every threat. Production security relies on defense in depth: multiple independent controls positioned throughout the request lifecycle.

Internet
   │
   ↓
HTTPS / TLS
   │
   ↓
Rate Limiting
   │
   ↓
Authentication
   │
   ↓
Authorization / RBAC
   │
   ↓
Input Validation
   │
   ↓
Business Logic
   │
   ↓
Database / Dependencies

Logs + Metrics + Alerts observe the entire path

Each layer answers a different question:

This layered architecture is more resilient because bypassing one control does not automatically bypass all others.

Production Design Example

Consider a public e-commerce API with customer endpoints, administrative endpoints, and payment operations.

                    Internet
                       │
                       ↓
                   HTTPS/TLS
                       │
                       ↓
                  API Gateway
                       │
             ┌─────────┴─────────┐
             │                   │
       Rate Limiter        Authentication
             │                   │
             └─────────┬─────────┘
                       ↓
                Authorization
                  / RBAC
                       │
                       ↓
               Input Validation
                       │
                       ↓
                Application API
                  │          │
                  ↓          ↓
              Database   Services

              Logs / Metrics
                    │
                    ↓
              Monitoring
                    │
                    ↓
                  Alerts

A customer calls:

POST /orders

The request passes through several independent checks.

Transport security: the endpoint accepts HTTPS and redirects or rejects insecure access according to the deployment architecture.

Rate limiting: the gateway applies limits based on the authenticated customer or another appropriate client identity.

Authentication: the access token is verified, including its signature and relevant claims.

Authorization: the identity must have permission to create orders.

Validation: product identifiers, quantities, request size, content type, and other input constraints are checked before business logic executes.

Business authorization: referenced resources must belong to or be accessible by the caller.

Monitoring: request outcome, latency, rate-limit decisions, authentication failures, and other security-relevant events produce metrics or structured logs without recording credentials.

An administrative operation receives stricter authorization:

DELETE /admin/users/123
          │
          ↓
Authenticated?
          │
          ↓
Admin role?
          │
          ↓
users:delete permission?
          │
          ↓
Input valid?
          │
     ┌────┴────┐
     │         │
    yes        no
     │         │
     ↓         ↓
 execute      reject

Rate limits can also differ by endpoint:

Monitoring then correlates behavior across these controls. A single failed login is ordinary; thousands of failed logins across many accounts from one source may require investigation or automated mitigation.

The broader architecture should also define secret storage, key rotation, network boundaries, audit requirements, dependency security, and incident response. Designing Secure API Architectures covers those system-level decisions.

Common API Security Mistakes

• Using authentication without authorization. Knowing an identity does not mean that identity can access every resource.
• Trusting frontend restrictions. Clients can bypass the UI and call API endpoints directly.
• Using long-lived credentials unnecessarily. Stolen credentials remain useful for longer.
• Hardcoding JWT signing keys or API secrets. Secrets can leak through source repositories, images, or deployment artifacts.
• Validating only request bodies. Headers, query parameters, paths, and uploaded files are also untrusted.
• Using one global rate limit. Different endpoints and clients have different abuse and capacity profiles.
• Applying rate limits only by IP. Shared networks, proxies, distributed attackers, and authenticated users require more context.
• Logging tokens and passwords. The monitoring system becomes another source of credential exposure.
• Trusting a JWT merely because it can be decoded. Signature and relevant claims must be verified.
• Putting sensitive information into JWT payloads. Signed JWT payloads are not automatically encrypted.
• Returning excessive error details. Stack traces and internal implementation details can help attackers understand the system.
• Ignoring authorization at the resource level. A valid permission may still not grant access to every object of that type.

Production Checklist

• Require HTTPS for production API traffic.
• Use modern TLS configuration.
• Authenticate every protected endpoint.
• Separate authentication from authorization.
• Validate JWT signatures and relevant claims when JWTs are used.
• Use short-lived access credentials where appropriate.
• Store secrets outside application source code.
• Rotate sensitive credentials and signing keys safely.
• Apply least-privilege authorization.
• Enforce authorization on the server.
• Check resource ownership where required.
• Use RBAC or another explicit access-control model.
• Rate-limit sensitive and expensive endpoints.
• Choose rate-limit keys based on the actual threat model.
• Throttle traffic when backend capacity needs protection.
• Validate path, query, header, and body inputs.
• Enforce request and upload size limits.
• Use parameterized database queries.
• Return controlled error responses.
• Do not expose stack traces to API clients.
• Record authentication and authorization failures.
• Monitor unusual traffic and error patterns.
• Alert on meaningful security signals.
• Never log passwords or raw authentication secrets.
• Redact sensitive values from logs.
• Test authentication and authorization failures.
• Test rate-limit behavior.
• Test malformed and oversized inputs.
• Review security controls whenever new endpoints are introduced.

Frequently Asked Questions

API security controls overlap intentionally, but each one protects a different boundary. Understanding those boundaries helps avoid relying on one mechanism for a problem it does not solve.

Is HTTPS Enough to Secure an API?

No. HTTPS protects data while it travels between systems, but it does not decide who may call the API, which resources a caller may access, whether input is safe, or how much traffic a client may send.

HTTPS is a foundational layer, not the entire security model.

What Is the Difference Between Authentication and Authorization?

Authentication establishes identity. Authorization determines which operations and resources that authenticated identity may access.

An API usually needs both.

Does a JWT Encrypt Its Payload?

Not by default. A commonly used signed JWT protects integrity but its encoded header and payload can generally be decoded by anyone who obtains the token.

Sensitive information should therefore not be placed into a JWT merely because the token is signed.

Is Rate Limiting a Security Feature?

Yes, but it is also a reliability and capacity-control mechanism. Rate limiting can reduce brute-force attempts and abusive traffic while protecting finite backend resources from excessive request volume.

It should complement authentication and authorization rather than replace them.

Should Input from Authenticated Users Still Be Validated?

Yes. Authentication establishes who sent a request, not whether the request data is valid or safe.

Authenticated clients can contain bugs, send outdated payload formats, become compromised, or intentionally submit malicious data.

Conclusion

API security is strongest when implemented as a collection of complementary patterns. HTTPS protects data in transit, authentication establishes identity, authorization and RBAC restrict access, rate limiting and throttling control traffic, input validation rejects unsafe requests, and monitoring reveals suspicious behavior.

These controls should be applied throughout the request lifecycle rather than concentrated at a single gateway or authentication layer.

Key takeaway: secure APIs with defense in depth. Protect the connection, verify identity, enforce permissions, constrain traffic, validate every untrusted input, and continuously observe what happens in production.

More Articles to Read

• API Security Explained: Threats and Defense Strategies
• Protecting APIs Against Common Attacks
• API Security Best Practices for Production Systems
